Model: RMT-100
Type: VMC
Year: New
SPECIFICATIONS:
Table Size……………… 30” x 112″
Table Weight Cap………… 4,000 Lbs
Table Travel………..(X).. 98.4”
Cross Travel………..(Y).. 33”
Head Travel…………(Z).. 26” (Head)
Rapid Traverse………….. 200 IPM
Spindle Nose To Table Top… 32″
Spindle Taper…………… Cat 40
Spindle Speed…………… 100 – 8,000 RPM
Auto Tool Changer……….. (20) Station
Motor Size……………… 20 HP – 220V – 3 Phs
Weight…………………. 18,000 Lbs
Control Type……………. Anilam 6,000
EQUIPPED WITH:
Anilam 6000 … Control
Conversational (&) G & M Code Programming
4th Axis Compatible
2.1 Gb Hard Drive
Rs232 & Ethernet Ports
Canned Drilling Cycles
Cutter Compensation
Tool Path Graphics
Update Able Software

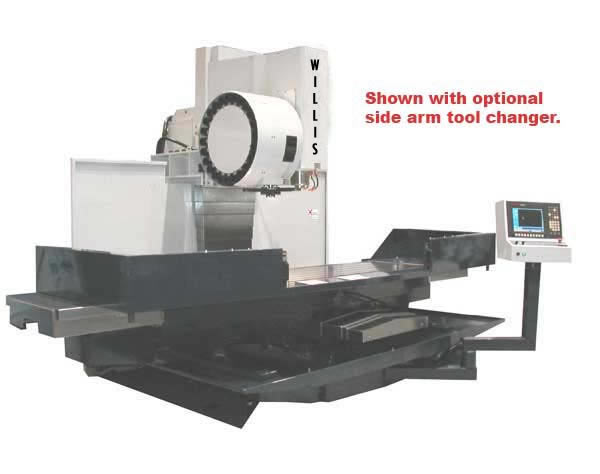

(20) Station (Umbrella Type) Automatic Tool Changer (Standard) … Shown With Optional Arm Type
Coolant System
Chip Tray
Auto Lube System
Table Guard
Leveling Bolts
Tool Box W/Tools
Operations Manual
H & G Table W/Center Slots
(4) H & G “Box” Bed Ways
Metal Telescopic Way Covers
Mpg Electronic Hand Wheel For Manuals Axis Movement
OPTIONAL ACCESORIES AVAILABLE:
(24) Station (Arm Type) Atc
Full Machine Enclosure W/ Chip Augur
(2) Speed Gearbox (100 – 2000 / 2000 – 8000) Low /High
Coolant Through Spindle, High Pressure
10,000 Rpm Spindle
Anilam 6000 Off-Line Software
COMMENTS:
“USA” Importer Distribution & Parts Center
Need a part?
Have a technical question?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
