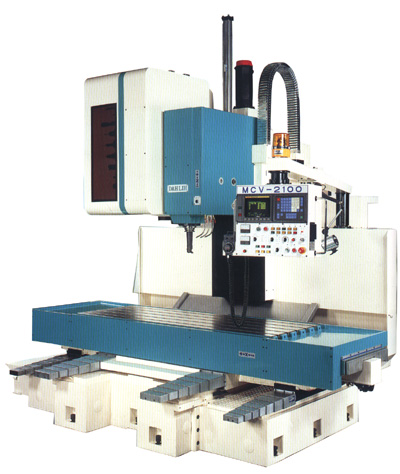

Model: MCV-2100
Type: VMC
Year: New
SPECIFICATIONS:
Table Size……………… 38” x 90″
Table Weight Cap………… 6,600 Lbs
Table Travel………..(X).. 82”
Cross Travel………..(Y).. 34”
Head Travel…………(Z).. 29.9” (Head)
Rapid Traverse………….. (X & Y) 394 IPM (Z) 315 IPM
Spindle Nose To Table Top… 7.8″ – 37.8″
Spindle Taper…………… Cat 50
Spindle Speed…………… 60 – 6,000 RPM
Auto Tool Changer……….. (32) Station
Motor Size……………… 30 HP – 220V – 3 Phs
Weight…………………. 41,600 Lbs
Control Type……………. Fanuc OiMD
EQUIPPED WITH:
Fanuc Oimd CNC Control
Rigid Tapping
(40) Block Look Ahead Function
(32) Station Hydraulic (Arm Type) Atc
(2) Speed – Spindle Gear Box
Note: Full Horse Power – High Torque At Low Speed Range
Spindle Chiller
Heat Exchanger
Chip Auger
Chip Conveyor
Coolant System (Air & Coolant Gun)
Coolant Thru Spindle (280 Lbs)
Coolant Around Spindle
Pendent Control … Equipped With:
A) Spindle Rpm Meter
B) Spindle Load Meter
Steel Way Covers
Rigid Tapping
Automatic Lubrication
Work Light
“Full” Splash Guard
Auto Power Off
(4) Box Ways
Tool Box W / Tools
Manufactured In Taiwan To U.S.A. Standards
OPTIONAL ACCESORIES AVAILABLE: (P.O.R.)
Upgrade To Fanuc 18Ima Control
Upgrade To Fanuc 0Im Control
10,000 Rpm Spindle
12,000 Rpm Spindle
15,000 Rpm Spindle
35 HP Spindle Motor In Lieu Of 30 HP
Coolant Thru Spindle (700 Psi)
4Th Axis Interface
Oil Mist Device
Oil Skimmer
(40) Station Automatic Tool Changer
Dah Lih Automatic Tool Length Measuring Device
Rotary Table
Set Up & Training
COMMENTS: Manufactured In Taiwan To U.S.A. Standards
