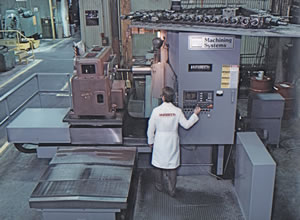

Model: HMC-200 … Fanuc Oi CNC Control
Tooling Stations: 48 Stations
Year: New
SPECIFICATIONS:
Rotary Table Size:………. 39” X 39”
Degree of Table Rotation:… 1 Degree
Table Weight Capacity:…… 10,000 Lbs
Table Travel………..(X).. 78” (Longitudinal)
Table Travel………..(Z).. 58” (Cross)
Vertical Head Travel…(Y).. 58”
Rapid Traverse:…………. 480 IPM
Spindle Taper:………….. CAT 50
Spindle Nose to Table Top:.. 58″
Spindle Speeds:…………. 0-3000 RPM
Auto Tool Changer:………. (48) Station … Side Arm
Motor Size:…………….. 30 HP
Weight:………………… 65,000 Lbs
Control Type:…………… Fanuc Oi
EQUIPPED WITH:
Fanuc Oi CNC Control
Coolant Thru Spindle
Precision 360 Degrees Rotary Table (“B”) w/1 Degree Indexing
H & G Box Square Ways
Double Column Design
Precision Ball Screws
Spindle Load Meter
OPTIONAL ACCESSORIES AVAILABLE … P.O.R.
Pallet System Including (2) or (4) 39” X 39” Pallets
(76) Station ATC
Extend “X” Axis Travel … 120″
Extend “Y” Axis Travel … 72″
Chip Conveyor
Renishaw Mp-3 Probe Package
“Full Machine” Enclosure
COMMENTS: Mfg. in U.S.A.
A “U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
