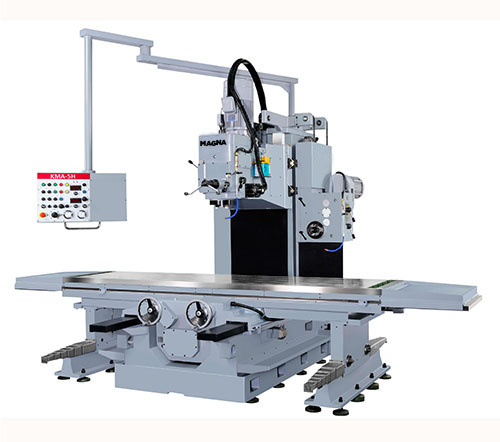

Model: KMA-5H
Type: Vertical/Horizontal
Year: New
SPECIFICATIONS:
Table Size ……………… 29.5” x 106.3”
Longitudinal Travel ….(X).. 78.75”
Cross Travel ………..(Y).. 31.5”
Vertical Travel (Knee)..(Z).. 27.56”
VERTICAL HEAD:
Motor Size ……………… 20 HP – 220V or 440V – 3 Phs
Spindle Speeds ………….. (VS) 45 – 1500 RPM
Spindle Taper …………… #50
HORIZONTAL HEAD:
Motor Size ………………. 7.5 HP
Spindle Speeds …………… (12) 45 – 1450 RPM
Spindle Taper ……………. #50
Table Weight Capacity …….. 2640 Lbs
Weight…………………… 28,650 Lbs
Dimensions (LxWxH)………… 121″ x 224.2″ x 126″
EQUIPPED WITH:
Outboard Table Supports
Pendant Control
Coolant System
Auto Lubrication System
Draw Bar
Tool Box w/Tools
MACHINE FEATURES:
“Heavy Duty” Meehanite Castings
H & G Box Ways
Table Backlash Eliminate (Adjustable)
(3) Way Powerfeed
(3) Way Rapid Traverse
#50 Spindle Taper
Horizontal Milling Head (Designed for Precision Boring)
“Manual” Course & Fine Feed
Pneumatic Power Locks on Spindle, Table & Saddle
Variable Speed Feed Rate on Table & Saddle
Automatic Lubrication on Vertical Slide Ways
Vertical Slide Ways
OPTIONAL ACCESSORIES:
Power Draw Bar w/Foot Pedal
6” Kurt – Type Vise
6” Kurt Vise w/Swivel
Halogen Work Light
Newall (3) Axis Digital Readout
