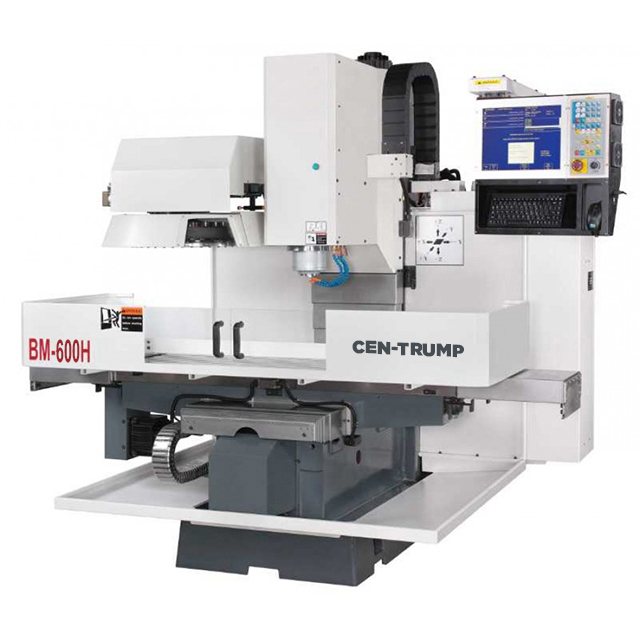

Model: BM-600-H
Type: CNC Bed Mill
Year: New
SPECIFICATIONS:
Table Size……………… 17.7” x 70.8”
Table Travel………..(X).. 59”
Table Travel………..(Y).. 24.4”
Knee Travel…………(Z).. 28.3”
Spindle Nose to Table Top… 28”
Motor Size……………… 15 HP – 220V – 3 Phs
Spindle Speeds(V.S.)…….. 60 – 8000 RPM
Spindle Taper…………… Cat 40
Table Load Capacity……… 2200 Lbs
Rapid Traverse………….. 250 IPM
Weight…………………. 9460 Lbs
Dimensions……………… To be Advised
Control Type……………. Centroid M-400
EQUIPPED WITH:
STANDARD EQUIPMENT
(3) Axis Centroid M-400 Control
Conversational (Shop Floor Programming)
“G” Code
15” Color Monitor
RS-232 & Ethernet Ports
(1) GB Solid State Hard Drive
Auto Lube
Coolant System
Halogen Work Light
Splash Guard
Leveling Bolts & Pads
Tool Box w/Tools
MACHINE FEATURES
(3) Axis
Spindle Speeds (Programmable
H & G Box Ways (Y & Z Axis)
(4) Box ways
Bed Ways – Turcite Coating
Meehanite Casting
“Double Nut” – Precision Ball Screws
(1) Year “Machine Parts” Warranty
(1) Year “Control” Warranty
OPTIONAL ACCESSORIES AVAILABLE
OPTIONAL ACCESSORIES (“CNC” MILL)
6” IMCO (Kurt Type) Vise
6” Precision Kurt Vise
(6) End Mill Adaptors (3/16” – 1”)
5.9” Rotary Table Package (Includes 4th Axis Pre-Wire)
7.8” Rotary Table Package (Includes 4th Axis Pre-Wire)
(52) PC. Clamping Kit
Table Guard
10” Riser Block (Engine Block Job Shop)
17 KVA Transformer (440/480V)
(16) Station Automatic Tool Changer Magazine w/Software
(20) Station Automatic Tool Changer Magazine w/Software
Mist Coolant System
Table Guard
Full Enclosure
SOFTWARE OPTIONS (CENTROID CONTROL)
Drilling Cycles… Standard
Rigid Tapping
Multiple Work Coordinate System
User Definable Macros & Sub Programs… Standard
Compression Tapping… Standard
Scaling & Mirroring
Unlimited Part Program Size
4th Axis Software… Standard
Coordinate System Rotation
DXF In, CAD Drawing Input Software
Cutter Compensation… Standard
Intercon Off-Line Conversational Program (For Desktop PC)
Engraving Software
DIGITIZING & PROBING
2D & 3D Digitizing Software (Includes Mold Magic Software)
DP-4 Probing Package
TT-1 Tool Touch Off Kit
Toolroom Package:
D4 Probing Package
TT-1 Tool Touch Off Kit
Work Coordinate System
ACCESSORY
(100) Step MPG
Installation & Set-Up… Per Day
Control Training … Per Day
Plus Travel Expenses
COMMENTS: Control MFG. In U.S.A.
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B. Location
TERMS: Check w/Order
All prices subject to change without notice
