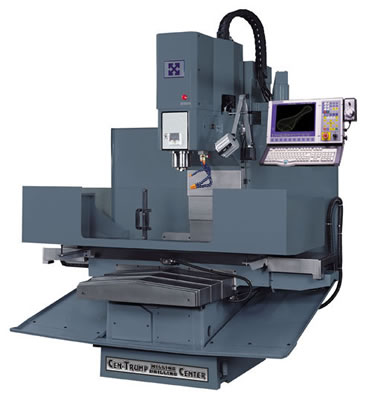

Model: E-8-EC
Type: CNC Bed Mill
Year: New
SPECIFICATIONS:
Table Size:…………… 18” x 56.6”
Table Travel………(X).. 50”
Table Travel………(Y).. 22”
Head Travel……….(Z).. 24”
Spindle Nose-Table Top:… 4.9” – 29”
Motor Size:…………… 10 HP – 220V – 3 Phs
Spindle Speeds(VS)…….. 6000 RPM
Spindle Taper:………… CAT 40
Table Load Cap.:………. 2420 Lbs
Rapid Traverse:……….. 150 IPM
Weight:………………. 8030 Lbs
Dimensions……………. To be Advised
Control Type:…………. Centroid M-400
EQUIPPED WITH:
Centroid M-400 CNC Control
“Conversational”
(Shop Floor Programming)
“G” Code
15” Color Monitor
RS-232 & Ethernet Ports
(1) GB Solid State Hard Drive
Power Draw Bar
Auto Lube
Coolant System
Halogen Work Light
Splash Guard
Leveling Bolts & Pads
Tool Box w/Tools
MACHINE FEATURES
(3) Axis
Spindle Speeds – (Programmable)
H & G Box Ways (Y & Z Axis)
(4) Box Ways
Bed Ways – Turcite Coating
Meehanite Casting
“Double Nut” – Precision Ball Screws
(1) Year “Machine Parts” Warranty
(1) Year “Control” Warranty
CNC MILL OPTIONS … P.O.R.
(52) pc. Clamping Kit
(20) CAT 40 Retnesion Knobs
6” IMCO (Kurt Type) Vise
6” Precision Kurt Vise
(16) Automatic Tool Changer – Umbreall w/Software
4th Axis Pre-Wire
10” Riser Block
Transformer (440/480V)
Mist Coolant System
Table Guard
Full Enclosure
Upgrade from 6000 RPM to 8000 RPM
10 HP to 15 HP
SOFTWARE OPTIONS (CENTROID CONTROL)
Drilling Cycles
Rigid Tapping
Multiple Work Coordinate Systems
User Definable Macros & Sub Programs
Compression Tapping
Scaling & Mirroring
Unlimited Part Program Size
4th Axis Software
Coordinate System Rotation
DXF in, CAD Drawing Input Software
Cutter Compensation
Intercon Off-Line Conversational Program (Desktop PC)
Engraving Software
DIGITIZING & PROBING 2D & 3D Digitizing Software
(Includes Mold Majic Software)
DP-4 Probing Package
TT-1 Tool Touch Off Kit
Toolroom Package:
D4-Probing Package
TT-1 Tool Touch Off Kit
Work Coordinate System
ACCESSORY
(100) Step MPG
Installation & Set-Up
Control Training
NOTE: Plus Travel Expense
​SOFTWARE OPTIONS (CENTROID CONTROL) … P.O.R.
Drilling Cycles
Rigid Tapping
Multiple Work Coordinate Systems
User Definable Macros & Sub Programs … Standard
Compression Tapping … Standard
Scaling & Mirroring
Unlimited Part Program Size
4th Axis Software … Standard
Coordinate System Rotation
DXF in, CAD Drawing Input Software
Cutter Compensation … Standard
Intercon Off-Line Conversational Program (for Desktop PC)
Engraving Software
DIGITIZING & PROBING: … P.O.R.
2D & 3D Digitizing Software (Includes Mold Majic Software)
DP-4 Probing Package
TT-1 Tool Touch Off Kit
Tool room Package:
D4-Probing Package
TT-1 Tool Touch Off Kit
Work Coordinate System
ACCESSORY: … P.O.R.
(100) Step MPG
Installation & Set-Up … (Per Day)
Control Training … (Per Day)
“Parts & Service” Provided by IMCO – Coast to Coast
COMMENTS:
Cen-Trump
#1 Machine Tool Builder … They Offer:
“Affordable” CNC Machines
Quality, Rigidity, & Accuracy
Provides Parts & Service in a Timely Matter
Centroid: Mfg. in U.S.A.:
#1 Builder of CNC Controls in America … They Offer:
“Zero” Down Time
Job Shop “Conversational” Programming
“G-Code” – Fanuc Programming
“2000” Blocks Per Second “Look-A-Head” Speed
Monthly “Training” Offered at Columbus Classroom
Centroid Is “PC” Based Control … When Programming You Can Choose: “Conversational” or “G” Code Format
See Centroid Control “ICON” On Home Page
Learn In (4) Hours Conversational & ”G” Code Programming
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
