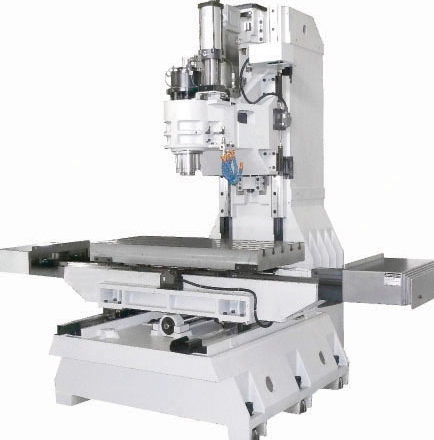

Model: EMC-1100
Type: VMC
Year: New
SPECIFICATIONS:
Table Size……………… 47.24” x 22.04”
Table Weight Cap………… 1760 Lbs
Table Travel………..(X).. 43.3”
Cross Travel………..(Y).. 22.05”
Head Travel…………(Z).. 24.01”
Rapid Traverse………….. 1180 IMP
Spindle Nose To Table Top… 4.72” – 28.74”
Spindle Taper…………… BT 40 / CAT 40
Spindle Speed…………… 8000 RPM
Auto Tool Changer……….. (20) Stations (Arm Type)
Motor Size……………… 20/14.6 HP – 440V – 3 Phs
Weight…………………. 15,180 Lbs
Control Type……………. Syntec CNC Control
EQUIPPED WITH
Syntec CNC Control (Mfg. in U.S.A.)
Linear Ways
Meehanite Castings
Fully Enclosed
MPG Hand Wheel
Automatic Lubrication
Spiral Chip Conveyor
Chip Cart
Chip Flush System
Flood Coolant System
Leveling Pads
Work Light
Tool Box w/Tools
Program & Maintenance Manuals
OPTIONAL ACCESSORIES AVAILABLE: P.O.R.
Big Plus Dual Contact Spindle
(24) Station Automatic Tool Changer … Arm Type
Flat Belt … Chip Conveyor
10.000 RPM Spindle w/Chiller
Coolant Thru Spindle
Coolant Oil Skimmer
Coolant Mist Removeal Vacuum
220V to 440V Transformer
5C 4th Axis Rotary Table
8” 4th Axis Rotary Table
10” 4th Axis Rotary Table
Control Exchanged for Fanuc Oi-MD CNC Control
Control Exchange for Misubisih M70 CNC Control
COMMENTS:
“USA” IMPORTER DISTRIBUTION & PARTS CENTER
Need a Part?
Have a Technical Question?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
