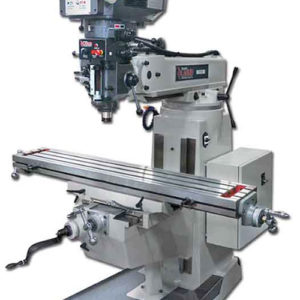

Model: 5-VK … Variable Speed
Type: Knee Mill
Year: New
SPECIFICATIONS:
Table Size……………. 12” X 60”
Longitudinal Travel..(X).. 40”
Cross Travel………(Y).. 17”
Vertical Travel……(Z).. 16-5/8”
Dist Spindle to Table….. 2-1/4″ – 21-7/8”
Quill Travel………….. 5-1/2”
Quill Diameter………… 4.13″
Spindle Taper…………. #40
Spindle Speeds(VS)…….. 70 – 3900 RPM
Table Weight Capacity….. 990 Lbs
Motor Size-Voltage…….. 5 HP – 220/440V – 3 Phs
Weight……………….. 4300 Lbs
Dimensions……………. 114″L x 71″W x 90″H
EQUIPPED WITH:
Variable Speed
Coolant System
Chip Tray
Power Elevation to Knee
Halogen Work Light
Manual Draw Bar
Back & Front Way Covers
Leveling Bolts & Plates
Auto Lube
Operation Manual
Tool Box w/Tools
MACHINE FEATURES:
Meehanite Casting
H & G on X & Y Axis and Table
Turcite Coated on X & Y Bed Ways
Square Way on Y & Z Axis Bed Ways
Spindle Supported by Class 7 Bearings (0.0002″ Runout)
“Back” Gear for Heavy Cutting
(2) Way Tilt Head
90 Degree Left & Right
Precision Lead Screw
Hard Chrome Quill
OPTIONAL ACCESSORIES AVAILABLE … (P.O.R.)​
(2) Axis Newall Digital Readout
(3) Axis Newall Digital Readout
(6) pc End Mill Adaptor Set (3/16″ – 1″)
Table Power Feed (Y)
Table Power Feed (Z)
Automatic Draw Bar
(52) pc Clamp Set
Right Angle Attachment
6″ Riser Block
6” Kurt Precision Vise
6” Vise – Kurt Type w/Swivel Base
Mitutoyo Quill “LCD” Readout
Phase Converter 3 Phs to 1 Phs
