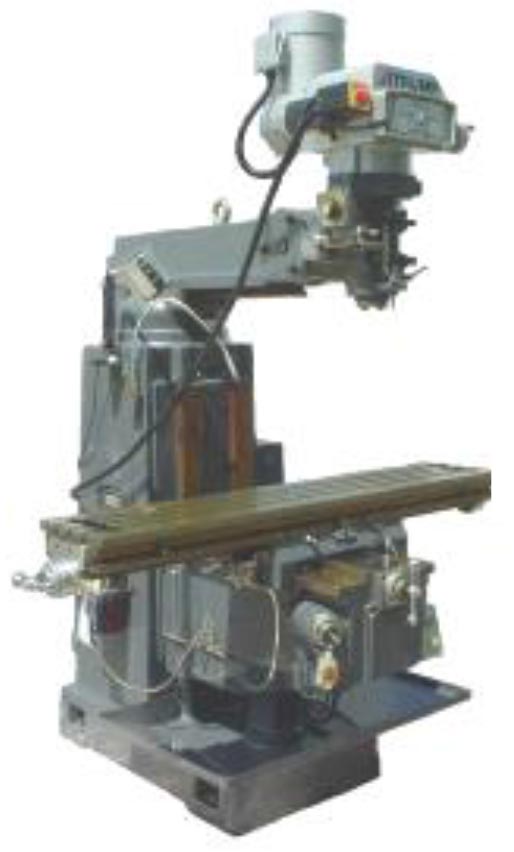

Model: 5-EV
Type: Knee Mill
Year: New
SPECIFICATIONS:
Table Size……………. 12” x 60”
Longitudinal Travel..(X).. 40”
Cross Travel………(Y).. 17”
Vertical Travel……(Z).. 16-5/8”
Quill Travel………….. 5”
Dist. Spindle to Table…. 21-7/8”
Spindle Taper…………. #40
Spindle Speeds..(EVS)….. 70 – 4000 RPM
Motor Size – Voltage…… 5 HP-220V-3 Phs
Table Weight Capacity….. 990 Lbs
Weight……………….. 4300 Lbs
Dimensions……………. To Be Advised
EQUIPPED WITH:
STANDARD EQUIPMENT
Power Elevation to Knee
Halogen Work Light
Draw Bar
Back & Front Way Covers
Auto Lube
Chip Tray
Coolant System
R-8 Collet Holder
Operation Manual
Tool Box w/Tools
MACHINE FEATURES
“Electronic” Variable Speed Head
Meehanite Casting
(2) Way Tilt Head
NOTE: Head Tilts … 90 Deg. L & R
Back Gear for Heavy Cutting
H & G on X & Y Slide way
H & G Table
Turcite Coating on X & Y Axis Slide way
Square Way on “Y” Axis Slide way
Spindle Supported by Class 7 Bearings
Hard Chrome Quill
OPTIONAL ACCESSORIES AVAILABLE … P.O.R.
6” Riser Block
8” Riser Block
Table Power Feed (X)
Table Power Feed (Y)
6” Kurt Precision Vise
6” Vise – Kurt Type w/Swivel Base
Automatic Draw Bar – (Installed)
Right Angle Attachment
(6) Piece End Mill Adaptor Set…(3/16-1”)
Flood Coolant System
Mist Coolant System
(52) Pc. Clamp Set
Mitutoyo Quill “Lcd” Readout (Installed)
(2) Axis Newall Dro
Installation Of Dro … (2) Axis
(3) Axis Newall Dro
Installation Of Dro … (3) Axis
Phase Converter 3 PHS to 1 PHS
Upgrade from 5 HP to 7.5 HP
COMMENTS:
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
