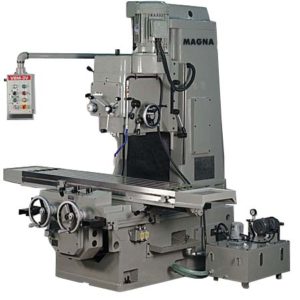

Model: KMA-1
Type: Heavy Duty Bed Mill
Year: New
SPECIFICATIONS:
Table Size……………. 15” x 67”
Longitudinal Travel..(X).. 39”
Cross Travel………(Y).. 15”
Vertical Travel……(Z).. 20”
Quill Head Travel……… 20”
Spindle to Table………. 4” – 24”
Spindle Center to Column.. 15″
Spindle Taper…………. #50
Spindle Speeds (12)……. 45 – 1500 RPM
Motor Size……………. 10 HP – 220V or 440V – 3 Phs
Weight……………….. 9000 Lbs
Dimensions (LxWxH)…….. 126″ x 79″ x 87″
EQUIPPED WITH:
Pendant Control
Coolant System
Auto Lubrication System
Draw Bar
Tool Box w/Tools
MACHINE FEATURES
Geared Head (H & G)
“Heavy Duty” Meehanite Castings
H & G Box Ways
Table Backlash Eliminate (Adjustable)
(3) Way Powerfeed
(3) Way Rapid Traverse
#50 Spindle Taper
Spindle Head (Designed for Precision Boring)
“Manual” Course & Fine Feed
OPTIONAL ACCESSORIES:
Power Draw Bar w/Foot Pedal
6” Kurt – Type Vise
6” Kurt Vise w/Swivel Base
Halogen Work Light
(3) Newall Axis Digital Readout
