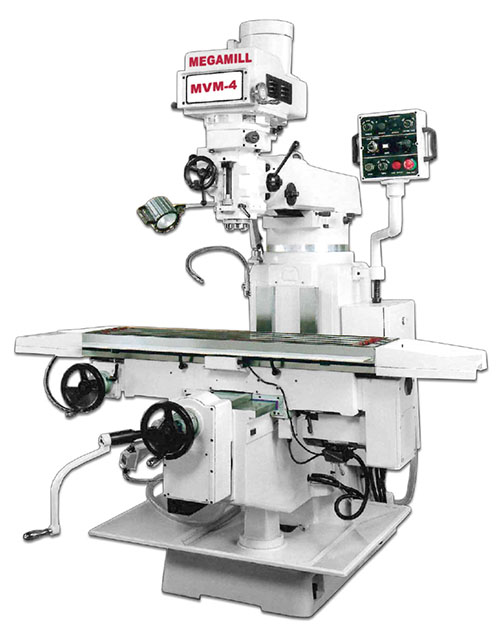

Model: MVM-4
Type: Knee Mill
Year: New
SPECIFICATIONS:
Table Size………………. 11” x 58”
Longitudinal Travel…..(X).. 39.37”
Cross Travel…………(Y).. 15.35”
Vertical Travel………(Z).. 15.75”
Quill Travel…………….. 5”
Dist. Spindle To Table Top… 16”
Spindle Taper……………. #40
Spindle Speeds (VS)………. 60 – 4300 RPM
Motor Size – Voltage……… 5 HP – 220/440V – 3 Phs
Table Weight Capacity…….. To Be Advised
Machine Weight…………… 3940 Lbs
Dimensions………………. To Be Advised
EQUIPPED WITH:
STANDARD EQUIPMENT
Flood Coolant System
Auto Lube
Draw Bar
Way Covers
Power Feeds (X,Y & Z)
Rubber Chip Cover (F & R)
Operation Manual
MACHINE FEATURES
Head Tilts 45 Degrees (Left & Right)
Meehanite Castings
Precision Hard Chrome Quill
Hardened & Precision Ground Ways
Class 7 Spindle Bearings
Turcite Coating On X-Y Axis
OPTIONAL ACCESSORIES AVAILABLE: P.O.R.
Work Light
6” Vise – Kurt Type
6” Kurt Precision Vise
Automatic Draw Bar
(2) Axis Newall D.R.O…. Installed
(3) Axis Newall D.R.O…. Installed
COMMENTS: Mfg. In Europe
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
