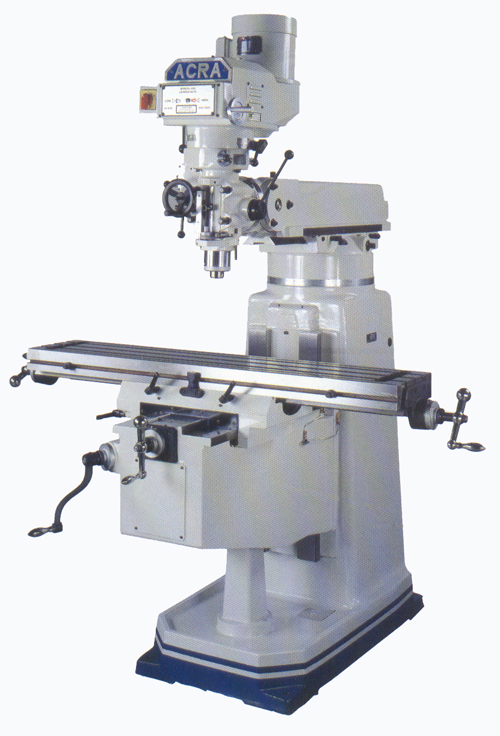

Model: AM-4-V
Type: Knee Mill
Year: New
SPECIFICATIONS:
Table Size……………. 12” x 54”
Longitudinal Travel..(X).. 37”
Cross Travel………(Y).. 17”
Vertical Travel……(Z).. 16”
Quill Travel Dist……… 5”
Quill Diameter………… 4″
Spindle To Table………. 21″
Spindle Taper…………. #40
Spindle Speeds(VS)…….. 50 – 3750 RPM
Motor Size – Voltage…… 5 HP – 220/440V – 3 Phs
Table Weight Capacity….. 990 Lbs
Weight……………….. 3520 Lbs
Dimensions……………. 68-1/2″(l) x 56-1/2″(w)
STANDARD EQUIPMENT
Power Elevation to Knee
Coolant System
Chip Tray
Halogen Work Light
Draw Bar
Back & Front Way Covers
Leveling Bolts & Plates
Auto Lube
Operation Manual
Tool Box w/Tools
MACHINE FEATURES
Variable Speed
Meehanite Casting
H & G on X & Y Slideway
H & G Table
Turcite Coating on X & Y Axis Slideway
Square Way on Y & Z Axis Slideway
Spindle Supported by Class 7 Bearings (0.0002” Runout)
Hardened & Ground Bed Ways Turcite Coated
“Back” Gear for Heavy Cutting
(2) Way Tilt Head
NOTE: Head Tilts … 90Ëš L & R
Power Elevation to Knee
Precision Lead Screw
Hard Chrome Quill
OPTIONAL ACCESSORIES:
(2) Axis Newall Digital Readout “DP-700”
Installation of (2) Axis Digital Readout
(3) Axis Newall Digital Radout “DP-700″
Installation of (3) Axis Digital Readout
(6) Piece End Mill Adaptor Set (3/16″-1”)
Table Power Feed – “VS” (X)
Table Power Feed – “VS” (Y)
Automatic Draw Bar
(52) Piece Clamp Set
Right Angle Attachment
6″ Riser Block
8″ Riser Block
6″ Kurt Precision Vise
6″ Vise-Kurt Type w/Swivel Base
Mitutoyo Quill “LCD” Readout
