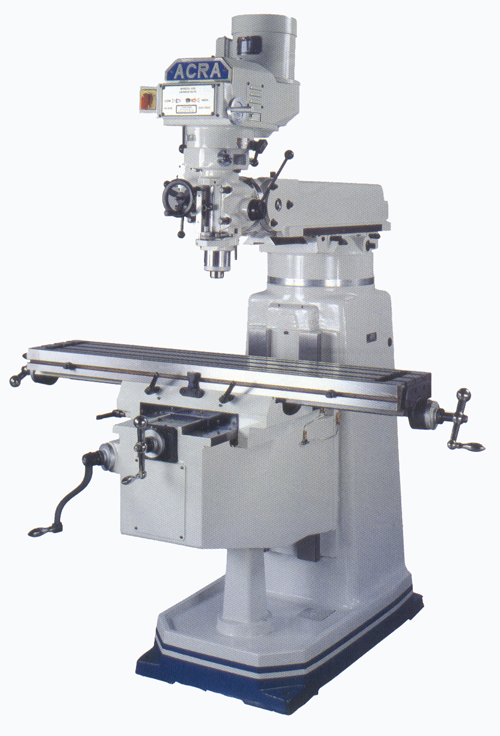

Model: AM-3-V
Type: Knee Mill
Year: New
SPECIFICATIONS:
Table Size……………. 12-1/2” x 54”
Longitudinal Travel..(X).. 37”
Cross Travel………(Y).. 17”
Vertical Travel……(Z).. 16”
Quill Travel Dist……… 5”
Spindle To Table………. 16″
Spindle Taper…………. R8 or #30
Spindle Speeds(VS)…….. 65 – 4200 RPM
Motor Size – Voltage…… 3 HP -220/440V – 3 Phs
Table Weight Capacity….. 900 Lbs
Weight……………….. 3400 Lbs
Dimensions……………. 56-1/2″(l) x 68-1/2″(w)
EQUIPPED WITH:
Quill Power Feed
Reverse Switch
Spindle Brake
Operation Manual
EQUIPPED WITH:​
Square Box Ways
Hardened & Ground Table & Ways
Turcite Coating on X & Y Slide Ways
Hard Chrome Quill
OPTIONAL ACCESSORIES:
(2) Axis Newall D700 Digital Readout
Installation of Digital Readout
Table Power Feed – “VS” (X)
Table Power Feed – “VS” (Y)
6″ Kurt Precision Vise
6″ Vise – Kurt Type
(5) Piece Collet Set (1/4″ x- 3/4″)
Coolant & Chip Tray
Automatic Draw Bar
Auto Lube
“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
