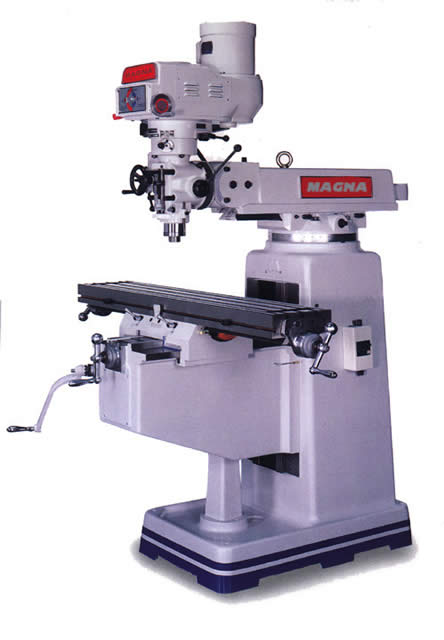

Model: BPV-5VK-C … Variable Speed
Type: Knee Mill
Year: New
SPECIFICATIONS:
Table Size……………… 10” X 54”
Longitudinal Travel….(X).. 36”
Cross Travel………..(Y).. 16”
Vertical Travel……..(Z).. 19.5”
Quill Travel……………. 5”
Dist Spindle Nose To Table.. —
Spindle Taper…………… #40
Spindle Speeds(VS)………. 60-4200 RPM
Table Weight Capacity……. 800 Lbs
Motor Size-Voltage………. 5 HP – 220/440V – 3 Phs
Weight…………………. 3600 Lbs
Dimensions……………… To Be Advised
EQUIPPED WITH:
Pendant control
“Back” Gear for Heavy Cutting
(4) Way Tilt Head
Tool Box
Draw Bar
Back & Front Way Covers
Operation Manual
One Shot Lube
MACHINE FEATURES:
Heavy Duty Body
Quill Power Feed
H & G Square Ways (Y & Z Axis)
Reversing Switch
Spindle Brake
19-1/2″ Knee – Vertical Travel
OPTIONAL ACCESSORIES AVAILABLE … (P.O.R.)
(5) #40 End Mill Holders
Table Power Feed “VS” (X)
Table Power Feed “VS” (Y)
Automatic Draw Bar – (Installed)
6″ Vise – Kurt Type
6″ Kurt Vise
Mitutoyo Quill “LCD” Readout (Installed)
Unique DRO – Installed………… (2 Axis)
NEWALL DRO “DP-700″………. (2 Axis)
Installation of DRO………………. (2 Axis)
NEWALL DRO “DP-700″……… (3 Axis)
Installation of DRO………………. (3 Axis)
COMMENTS:
“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
