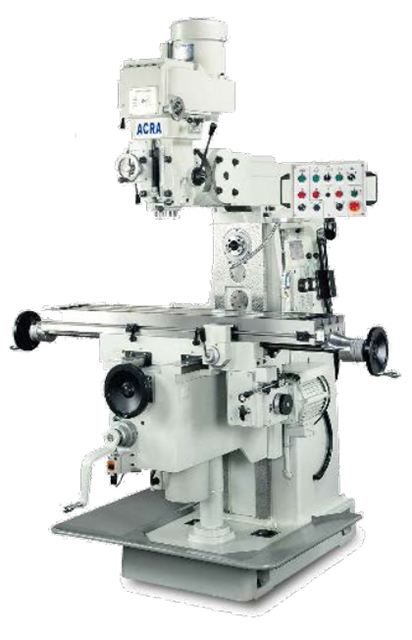

Model: LC-25-VH
Type: Vertical/Horizontal Mill
Year: New
SPECIFICATIONS:
Table Size ……………… 10” x 56”
Longitudinal Travel…..(X).. 36”
Cross Travel…………(Y).. 16-1/2”
Vertical (Knee) Travel..(Z).. 5”
Vertical Head:
Motor Size…………….. 5 HP – 220/440V – 3 Phs
Spindle Speeds(VS)……… 60 – 4500 RPM
Spindle Taper………….. #40
Spindle Travel…………. To be Advised
Horizontal Spindle:
Motor Size…………….. 5 HP – 220/440V – 3 Phs
Spindle Speeds(VS)……… 80 – 1350 RPM
Spindle Taper………….. #40
Table Work Load Capacity….. 900 Lbs
Weight………………….. 4200 Lbs
Dimensions………………. To be Advised
EQUIPPED WITH:
Flood Coolant System
Chip Pan
One Shot Lube
Rear Rubber Way Covers
1” Dia. Horizontal Arbor
Toolbox w/Tools
Operation Manual
MACHINE FEATURES
Rapid Traverse – Knee
Longitudinal Power Feed w/Rapid Traverse
Meehanite Casting
Hardened & Ground on X & Y Slideway
Hardened & Ground Table
Turcite Coating on X & Y Axis Slideway
Spindle Supported by Class 7 Bearings
Hardened & Ground Bed Ways Turcite Coated
OPTIONAL ACCESSORIES:
(2) Axis NEWALL Digital Readout “DP-700”
Installation of (2) Axis Digital Readout
(3) Axis NEWALL Digital Readout “DP-700”
Installation of (3) Axis Digital Readout
(52) pc Clamp Set
Right Angle Attachment
6” Rotary Table
8” Rotary Table
(5) Collets
Table Power Feed – “V.S.” (Y)
Knee Power Feed – “V.S.” (Z)
6″ Kurt Precision Vise
6″ Vise – Kurt Type w/Swivel Base
Automatic Draw Bar – (Installed)
Mitutoyo Quill “LCD” Readout – (Installed)
