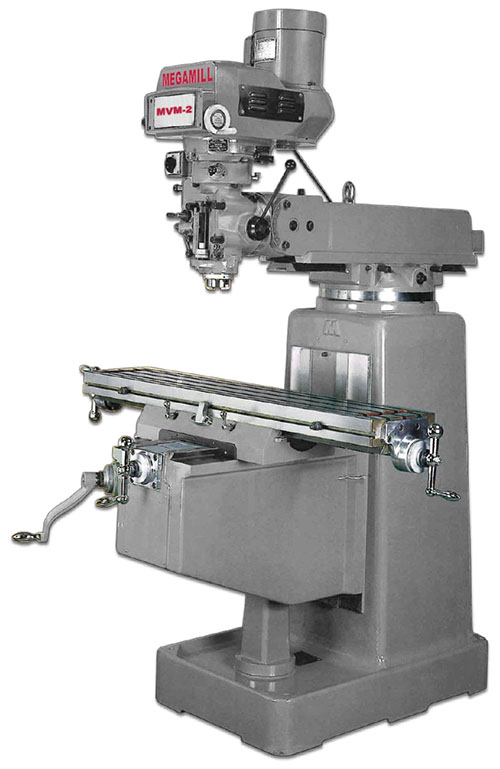

Model: MVM-2-EVS
Type: Knee Mill
Year: New
SPECIFICATIONS:
Table Size…… ……… 10” X 50”
Longitudinal Travel..(X).. 35”
Cross Travel………(Y).. 16”
Vertical Travel……(Z).. 16”
Quill Travel………….. 5”
Dist. Spindle To Table…. 16”
Spindle Taper…………. #40
Spindle Speeds(VS)…….. 0 – 4250 RPM
Motor Size – Voltage…… 5 HP – 220/440V – 3 Phs
Table Weight Capacity….. To Be Advised
Weight……………….. 2645 Lbs
Dimensions……………. To Be Advised
EQUIPPED WITH:
STANDARD EQUIPMENT:
Flood Coolant System
One Shot Lube
Draw Bar
Way Covers
Operation Manual
MACHINE FEATURES:
Head Tilts (Left & Right) (Front & Back)
Meehanite Castings
Precision Hard Chrome Quill
Hardened & Precision Ground Ways
Class 7 Spindle Bearings
Turcite Coating On X & Y Axis
OPTIONAL ACCESSORIES AVAILABLE: P.O.R.
Halogen Work Light
(7) Piece #40 End Mill Holders (1/8” – 1”)
6” Vise – Kurt Type
6” Kurt Precision Vise
Automatic Draw Bar
Table Power Feed (X)
Table Power Feed (Y)
Table Power Feed (Z)
Power Draw Bar
Chip Pan
Way Covers (Cross & Vertical)
6” Riser Block
Automatic Lubrication System
(2) Axis Newall Digital Readout Out
(3) Axis Newall Digital Readout Out
COMMENTS: Mfg. In Europe
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
