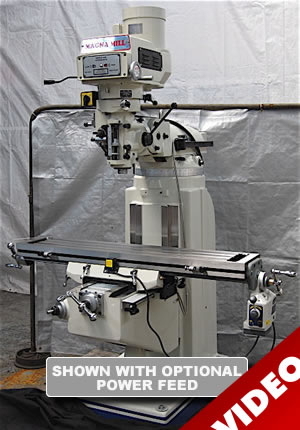

Model: BP-3-V
Type: Knee Mill
Year: New
SPECIFICATIONS:
Table Size……………. 9” x 49”
Longitudinal Travel..(X).. 35”
Cross Travel………(Y).. 12”
Vertical Travel……(Z).. 16”
Quill Head Travel……… 5”
Dist. Spindle to Table…. 18”
Spindle Taper…………. R-8
Spindle Speeds(VS)…….. 60 – 4200 RPM
Motor Size……………. 3 HP – 220V – 1 Phs
Table Weight Capacity….. 650 Lbs
Weight……………….. 2250 Lbs
Dimensions……………. To Be Advised
EQUIPPED WITH:
MACHINE FEATURES
Meehanite Casting
Quill Power Feed
H & G Table
H & G Dovetail ways
Hard Chrome Quill
Reversing Switch
Spindle Brake
STANDARD EQUIPMENT
(4) Way Tilt Head
“Back Gear” for Heavy Cutting
Back & Front Way Covers
One Shot Lube
Draw Bar
Operation Manual
Tool Box
OPTIONAL ACCESSORIES AVAILABLE … P.O.R.
Unique DRO – Installed….. (2 Axis)
Newall DRO “DP-700″…….. (2 Axis)
Installation of DRO…….. (2 Axis)
Newall DRO “DP-700″…….. (3 Axis)
Installation of DRO…….. (3 Axis)
(5) Piece Collet Set (1/4″ – 3/4”)
Table Power Feed “VS” (X)
Table Power Feed “VS” (Y)
6″ Vise – Kurt Type
Automatic Draw Bar – (Installed)
Mitutoyo Quill “LCD” Readout (Installed)
COMMENTS:
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All Prices Subject To Change Without Notice
