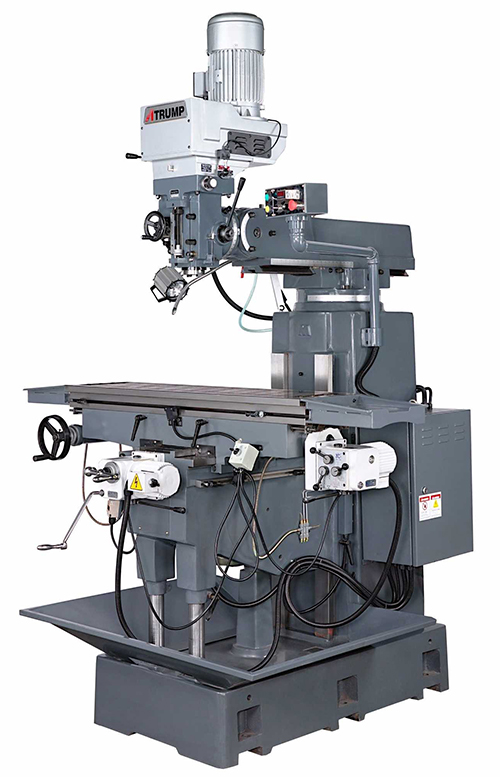

Model: 7-EV … Variable Speed
Type: Knee Mill
Year: New
SPECIFICATIONS :
Table Size………………… 14″ x 54″
Table Travel…………..(X).. 33.5″
Cross Travel…………..(Y).. 19.7″
Vertical Travel………..(Z).. 23.6″
Spindle Motor……………… 7.5 HP – 220V – 3 Phs
Spindle Speeds..(Vari-Speed)… 70 – 4000 RPM
Spindle Taper……………… #40
Spindle Nose to Table Top…… 20″
Quill Travel………………. 6″
Diameter of Quill………….. 4-1/8″
Table Work Load Capacity……. 1400 Lbs
Weight……………………. 6600 Lbs
Dimensions………………… To Be Advised
EQUIPMENT WITH:
“X” Axis Power feed (Gearbox)
“Y” Axis Power feed (Gearbox)
“Z” Axis Power Elevation to Knee
Coolant System
Chip Tray
Halogen Work Light
Draw Bar (Manual)
Back & Front Way Covers
Automatic Lubrication
Tool Box w/Tools
Operation Manual
Electronic Variable Speed
“Back Gear” for Heavy Cutting
Hardened & Ground “Box” Ways
(4) Way Tilt Head
Turcite Coating on Ways
Class “7” Spindle Bearings
Precision Lead Screw
Hard Chrome Quill
Head Swivels … 90 Degrees (L & R) 45 Degrees (F & B)
OPTIONAL ACCESSORIES AVAILABLE … P.O.R.
(2) Axis Newall Digital Readout “DP-700”
Installation Of (2) Axis Digital Readout
(3) Axis Newall Digital Readout “DP-700″
Installation Of (3) Axis Digital Readout
(6) Piece End Mill Adaptor Set (3/16″-1”)
Table Power Feed – “VS” (X)
Table Power Feed – “VS” (Y)
Automatic Draw Bar – (Installed)
(52) Piece Clamp Set
Right Angle Attachment
6″ Riser Block
8″ Riser Block
6″ Kurt Precision Vise
6″ Vise-Kurt Type
Mitutoyo Quill “LCD” Readout (Installed)
COMMENTS:
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
