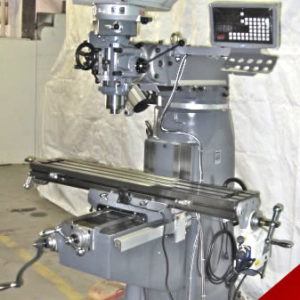

Model: 5-VK … Electronic Variable Speed
Type: Knee Mill
Year: New
SPECIFICATIONS:
Table Size……………. 10” x 50”
Longitudinal Travel..(X).. 32-1/2”
Cross Travel………(Y).. 16”
Vertical Travel……(Z).. 19”
Quill Travel………….. 5”
Quill Diameter………… 4″
Dist. Spindle to Table…. 20”
Spindle Taper…………. #40
Spindle Speeds (EVS)…… 4500 RPM
Motor Size……………. 5 HP – 220V – 3 Phs
Table Weight Capacity….. 900 Lbs
Weight……………….. 3500 Lbs
Dimensions……………. 94″(l) x 63″(w) x 94″(h)
EQUIPPED WITH:​
Power Elevation to Knee
Coolant System
Pendant Control
One Shot Lube
Halogen Work Light
Operation Manual
Tool Box w/Tools
MACHINE FEATURES:
Heavy Duty
Head Swives 90 Degree (Left & Right)
Electronic Variable Speed (Spindle Speeds)
NOTE: Increase-Decrease Speed by Controller Knob
Meehanite Casting
Hardened & Ground Ways on X & Y Axis
Hardened & Ground Table
Turcite Coating on X & Y Axis Slideways
Quill Power Feed Z Axis
Spindle Supported by Class 7 Bearings
Hard Chrome Quill
Dove Tail Ways on X, Y & Z Axis
OPTIONAL ACCESSORIES AVAILABLE … (P.O.R.):
(2) Axis Newall Digital Readout “DP-700”
(3) Axis Newall Digital Readout “DP-700″
(11) Pcs Collet Set (1/4” – 3/4”)
Table Power Feed (X) Axis
Table Power Feed (Y) Axis
Table Power Feed (Z) Axis
10″ x 54″ Table
Automatic Draw Bar
12″ Rotary Table (Vertical & Horizontal)
Horizontal Milling Attachment
1/2″ Jacobs Chuck w/R-8 Arbor
6″ Kurt Precision Vise
6” Kurt Type Vise
4″, 6″ or 8″ Riser Blocks
Chip Pan
Halogen Work Light
440V – 3 Phs
Coolant System
Mitutoyo Quill “LCD” Readout
