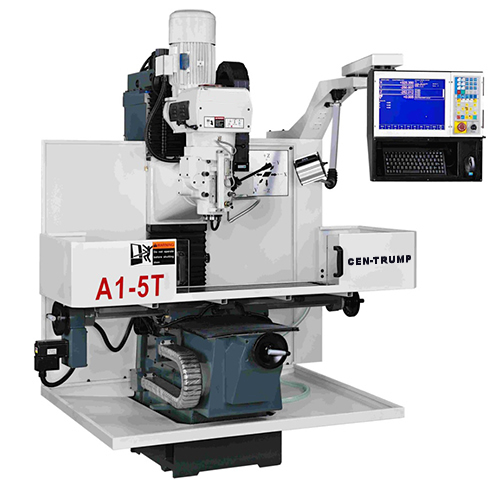

Model: A1-5T
Type: CNC Knee Mill
Year: New
SPECIFICATIONS:
Table Size……………… 9” x 49”
Table Travel………..(X).. 28.78”
Table Travel………..(Y).. 15.74”
Head Travel…………(Z).. 19.74″
Spindle Nose To Table Top… 3.93″ – 23.62”
Motor Size……………… 5 HP – 220V – 3 Phs
Spindle Speeds………….. 70 – 4000 RPM
Spindle Taper…………… R8 or #40
Table Load Capacity……… 880 Lbs
Rapid Traverse………….. Yes
Machine Weight………….. 3770 Lbs
Control Type……………. Centroid M-400i
Floor Space (LxWxH)……… 99″ x 102″ x 98″
Shipping (LxWxH)………… 90″ x 68″ x 89″
EQUIPPED WITH:
Centroid M400i CNC Control “Conversational” (Shop Floor Programming)
“G” Code
15” Color Monitor
RS-232 & Ethernet Ports
(1) GB Solid State Hard Drive
Auto Lube
Coolant System
Halogen Work Light
Splash Guard
Leveling Bolts & Pads
Tool Box w/Tools
MACHINE FEATURES:
(3) Axis
Spindle Speeds … (Programmable)
H & G Box Ways (Y & Z)
Bed Ways – Turcite Coating
Meehanite Casting
“Double Nut” – Precision Ball Screws
(1) Year “Machine Parts” Warranty
(1) Year “Control” Warranty
OPTIONAL ACCESSORIES:
CNC MILL
6” IMCO (Kurt Type) Vise
6” Precision Kurt Vise
(20) Pcs. Retension Knobs
Tool Holders
(52) Pcs. Clamping Kit
Table Guard
“Z” Axis Scale Feed Back for 3rd Quill Axis
Mist Coolant System
Power Draw Bar
SOFTWARE OPTIONS (CENTROID CONTROL)
User Definable Macros & Sub Programs
Compression Tapping
Scaling & Mirroring
Unlimited Part Program Size
4th Axis Software
Coordinate System Rotating
DXF in, CAD Drawing Input Software
Cutter Compensation
Intercon Off- Line Conversational Program (For Desktop PC)
Engraving Software
DIGITIZING & PROBING
2D & 3D Digitizing Software w/Mold Majic Software
NOTE: Requires Probe Package
DP-4 Probing Package
DP-7 Probing Package
TT-1 Tool Touch Off Kit
Toolroom Package
D4-Probing Package
TT-1 Tool Touch Off Kit
Work Coodinate System
ACCESSORY
(100) Step MPG
Installation
Set-Up Control Training
Plus Travel Expense
COMMENTS: Control Mfg. In U.S.A.
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
