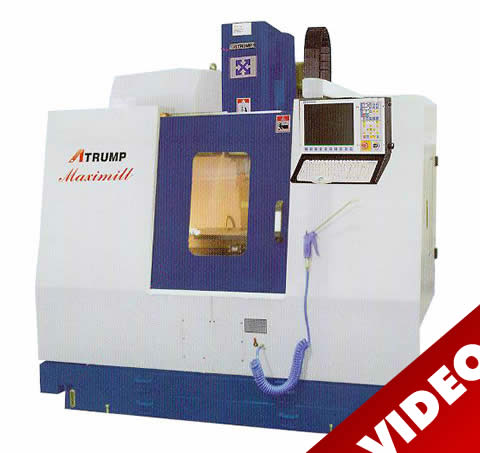

Model: E-216 Maxi-Mill
Type: VMC
Year: New
SPECIFICATIONS:
Table Size……………… 14″ X 34″
Table Weight Cap………… 900 Lbs
Table Travel………..(X).. 26″
Cross Travel………..(Y).. 16.1″
Head Travel…………(Z).. 20.1″
Rapid Traverse………….. 150 IPM
Spindle Nose To Table Top… 4.1 – 24.2″
Spindle Taper…………… CAT 40
Spindle Speed…………… 60-6000 RPM
Auto Tool Changer……….. (16) Station (Armless)
Motor Size……………… 7.5 HP – 220V – 3 Phs
Weight…………………. 5500 Lbs
Dimensions……………… To be Advised
Control Type……………. Centroid M 400S
STANDARD EQUIPMENT:
Fully Metal Enclosed
Automatic Tool Changer (16) Station (Arm Less)
Coolant System
Air Blast System
Halogen Work Light
Chip Tray
Auto Lube System
Table Guard
Leveling Bolts & Pads
Tool Box w/ Tools
Operations Manual
MACHINE FEATURES:
Centroid M 400S Control … (Mfg. In U S A)
Excellent Quality – “High Precision”
“Extremely” Rigid – Meehanite Casting
(4) Box Ways – “Y” Axis
X, Y & Z Axis … Hardened & Ground Bed Ways
Turcite Coated Ways
Class “7” Spindle Bearings
Metal Telescopic Way Covers (X, Y & Z Axis)
(1) Year “Machine Parts” Warranty
(1) Year “Control” Warranty
CENTROID CONTROL:
Mfg. In USA
(3) Axis (Simultaneous Contouring)
Full Conversational (Shop Floor Programming) & “ G” Code (Fanuc) Programming
15” Color Monitor
RS-232 & Ethernet Parts
(1) GB Solid State Hard Drive
2000 Blocks (per Second) Look-A Head Speed
OPTIONAL ACCESSORIES AVAILABLE: P.O.R.
Set Of (20) Retention Knobs
6” Precision Kurt Vise
Cat 40 Tool Package
Upgrade To 6,000 – 8,000 RPM Spindle
Mist Coolant System
Flush Down Coolant Gun w/ Air Blast… Standard
Motor Upgrade 7.5 HP To 10 HP
Full Enclosure… Standard
Chip Auger (Only Available w/ Full Enclosure
SOFTWARE OPTIONS (CENTROID CONTROL)
Rigid Tapping
Multiple Work Coordinate System
User Definable Macros & Sub Programs
Compression Tapping – Standard
Scaling & Mirroring
Unlimited Part Program Size
4th Axis Software – Standard
Coordinate System Rotation
DXF In, CAD Drawing Input Software
Cutter Compensation – Standard
Intercon Off-Line Conversational Program (For Desktop PC)
Engraving Software
DIGITIZING & PROBING
2D & 3D Digitizing Software (Includes Mold Majic Software)
DP-4 Probing Package
TT-1 Tool Touch Off
Tool Room Package:
D4 Probing Package
TT-1 Tool Touch Off Kit
Work Coordinate System
ACCESSORIES:
(100) Step MPG
Installation & Set-Up
Control Training
Plus Travel Expenses
COMMENTS: Control Mfg. In USA
“USA” IMPORTER DISTRIBUTION & PARTS CENTER
Need a Part?
Have a Technical Question?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
