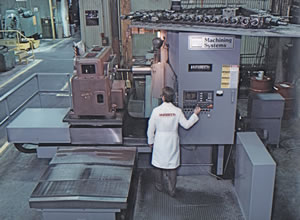

Model: HMC-400 … Fanuc Oi CNC Control
Tooling Stations: 60 Stations
Year: New
SPECIFICATIONS:
Rotary Table Size:……….. 48” x 60”
Degree of Table Rotation:…. 1 Deg.
Table Weight Capacity:……. 15,000 Lbs
Table Travel…………(X).. 160” (Longitudinal)
Table Travel…………(Z).. 70” (Cross)
Vertical Head Travel….(Y).. 90”
Rapid Traverse:………….. 480 IPM
Spindler Taper:………….. CAT 50
Spindle Nose to Table Top:… 90”
Spindle Speeds:………….. 0-2000 RPM
Auto Tool Changer:……….. (60) Station … Side Arm
Motor Size:……………… 40 HP – AC
Weight:…………………. 97,500 Lbs
Control Type:……………. Fanuc Oi
EQUIPPED WITH:
Fanuc Oi CNC Control
Coolant Thru Spindle
Precision 360 Degrees Rotary Table (“B”) w/1 Degree Indexing
H & G Box Square Ways
Double Column Design
Precision Ball Screws
Spindle Load Meter
OPTIONAL ACCESSORIES AVAILABLE … P.O.R.
Pallet System – Including (4) 48” X 48” Pallets
Chip Conveyor
Renishaw MP-3 Probe Package
“Full Machine” Enclosure
COMMENTS: Mfg. in U.S.A.
