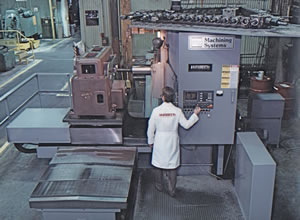

Model: HMC-300 … Fanuc Oi CNC Control
Tooling Stations: 48 Stations
Year: New
SPECIFICATIONS:
Rotary Table Size:……….. 48” X 48”
Degree of Table Rotation:…. 1 Deg.
Table Weight Capacity:……. 15,000 Lbs
Table Travel…………(X).. 120” (Longitudinal)
Table Travel…………(Z).. 58” (Cross)
Vertical Head Travel….(Y).. 72”
Rapid Traverse:………….. 480 IPM
Sindle Taper…………….. Cat 50
Spindle Nose to Table Top:… 72″
Spindle Speeds:………….. 0-2000 RPM
Auto Tool Changer:……….. (48) Station … Side Arm
Motor Size:……………… 30 HP
Weight:…………………. 95,500 Lbs
Control Type:……………. Fanuc Oi
EQUIPPED WITH:
Fanuc Oi CNC Control
Coolant Thru Spindle
Precision 360 Degrees Rotary Table (“B”) w/1 Degree Indexing
H & G Box Square Ways
Double Column Design
Precision Ball Screws
Spindle Load Meter
OPTIONAL ACCESSORIES AVAILABLE … P.O.R.
Pallet System Including (4) 48” X 48” Pallets
(76) Station Atc
Extend “Y” Axis Travel: 90” (Vertical)
Chip Conveyor
Renishaw Mp-3 Probe Package
“Full Machine” Enclosure
COMMENTS: Mfg. in U.S.A.
A “U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
