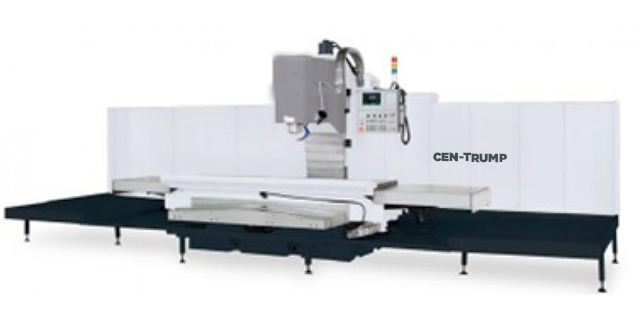

Model: BM-880-H
Type: VMC
Year: New
SPECIFICATIONS:
Table Size…………… 32” x 126”
Table Weight Cap……… 4850 Lbs
Table Travel……..(X).. 118”
Cross Travel……..(Y).. 35.4”
QuillHead Travel….(Z).. 29.5”
Rapid Traverse……….. 393”/787” IPM
Spindle Nose-Table Top… 35.4”
Spindle Taper………… Cat 40
Spindle Speed (VS)……. 60 – 6000 RPM
Auto Tool Changer…….. (20) ATC Armless
Motor Size…………… 20 HP – 220V – 3 Phs
Weight………………. 32,180 Lbs
Control Type…………. Centroid M-400
EQUIPPED WITH:
Centroid M-400 CNC Control
“Conversational” (Shop Floor Programming)
“G” Code
15” Color Monitor
(1) GB Solid State Hard Drive
(20) Armless Automatic Tool Changer
Power Draw Bar
Auto Lube
Coolant System
Halogen Work Light
Splash Guard
Leveling Bolts & Pads
Tool Box w/Tools
MACHINE FEATURES
(3) Axis
Spindle Speeds – (Programmable)
H & G Box Ways (Y & Z Axis)
(4) Box Ways
Bed Ways – Turcite Coating
Meehanite Casting
“Double Nut” – Precision Ball Screws
(1) Year “Machine Parts” Warranty
(1) Year “Control” Warranty
OPTIONAL ACCESSORIES:
6” Angle Vise w/Swivel Base
6” Precision Kurt Vise
(6) End Mill Adaptors (3/16” – 1”)
(52) PC. Clamping Kit
Table Guard
10” Riser Block (Engine Block Job Shop)
(20) Station Automatic Tool Changer Umbrella w/Software
Mist Coolant System
Semi Enclosure
Full Enclosure
SOFTWARE OPTIONS (CENTROID CONTROL):
Drilling Cycles … Standard
Rigid Tapping
Multiple Work Coordinate System
User Definable Macros .& Sub Programs … Standard
Compression Tapping … Standard
Scaling & Mirroring
Unlimited Part Program Size
4th Axis Software … Standard
Coordinate System Rotation
DXF In, CAD Drawing Input Software
Cutter Compensation … Standard
Intercon Off-Line Conversational Program (For Desktop PC)
Engraving Software
DIGITIZING & PROBING:
2D & 3D Digitizing Software (Includes Mold Magic Software)
DP-4 Probing Package
TT-1 Tool Touch Off Kit
Tool Room Package:
DP-4 Probing Package
TT-1 Tool Touch Off Kit
Work Coordinate System
ACCESSORY:
(100) Step MPG
COMMENTS: Mfg. in U.S.A
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
