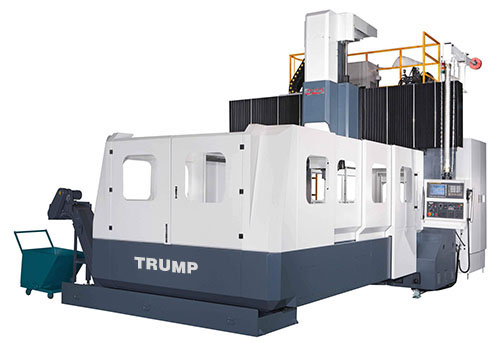

Model: D-2503
Type: Double Column VMC
Year: New
SPECIFICATIONS:
Table Size……………… 86” x 118”
Table Travel………..(X).. 118”
Table Travel………..(Y).. 102”
Head/Knee Travel…….(Z).. 39”
Spindle Nose To Table Top… 7.8″ – 47.2”
Distance Between Columns…. 106″
Automatic Tool Changer…… 32
Motor Size……………… 30 HP – 220V – 3 Phs
Spindle Speeds(V.S.)…….. 60 – 4500 RPM
Spindle Taper…………… Cat 50 / BT 50
Table Weight Capacity……. 22,000 Lbs
Rapid Traverse………….. 472/393 IPM
Weight…………………. 98,000 Lbs
Control Type……………. Fanuc Oi-MB
EQUIPPED WITH:
Fanuc Oi-MB CNC Control
RS-232 Port
Electric Handwheel
Chip Augers on Both Sides
High Pressure Auto Lube
Coolant Pump & Water Tank
Air Blasting
Air Count Balance
Precision Inspection Chart
Spindle Coolant System
“Z” Axis Oil Pressure Balance System
Work Light & Operation Light
Leveling Screws & Pads
Tool Box w/Tools
Operation Manual
MACHINE FEATURES
Semi-Enlcosed Splash Guard
Automatic Power Off System
H & G Box Way
Double Nut Precision Ball Screws H & G for Accuracy & Long Lasting
Meehanite Casting
Telecsopic Way Covers All (3) Axis
Extended Head
OPTIONAL ACCESSORIES: P.O.R.
Auxiliary Tool Stand
NC Rotary Table
Automatic Tool Setting Device
Computerized Scanning Imitative System
Linear Scale Feedback
90 Deg. Slide Milling Head
Universal Milling Head
45 Deg. Angular Milling Head
Chain Type Magazine
Oil Water Separating Tank
Coolant Through Spindle
Upgrade to 12,000 RPM (CAT 50 Taper – 20 HP)
(40) Automatic Tool Changer
(60) Automatic Tool Changer
