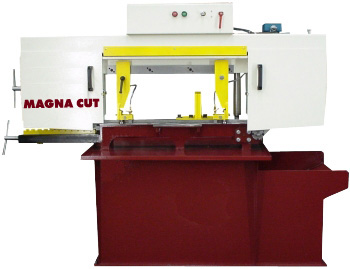

Model: 280-M … Step Pulley
Type: Scissors – Semi-Automatic (Double Mitering)
Year: New
SPECIFICATIONS:
Cutting Capacity:
Round:
(Max. Height)…11”
at 90 Deg…….11”
at 45 Deg…….10”
Rectangle:
(Max. Width)….16”
at 90 Deg…….9” x 16”
at 45 Deg…….9” x 11.3”
Blade Size:………1” x 12’
Blade Speed:(5)…..70 – 370 FPM
Motor Size:………2 HP-220/440V-3 Phs
Weight:………….1350 Lbs
EQUIPPED WITH:
Manual “Quick Acting” Vise
Powered Blade Brush
Carbide Blade Guides
Discharge Table w/Built in Conveyor
Flood Coolant System
Automatic Shut Off
Magnetic Starter w/Overload Protection
Hydraulic Controlled Head (Up & Down)
Adjustable Feed Rate
Instruction & Parts Manuals
COMMENTS:
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
