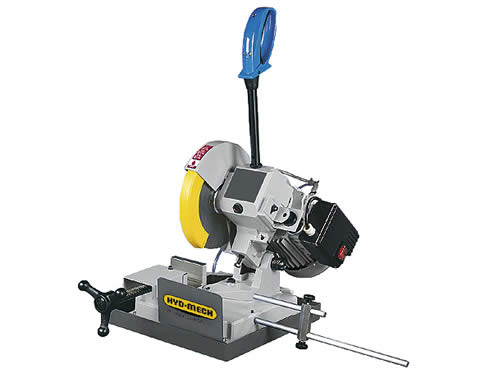

Model: P225
Type: Bench Top – Ferrous
Year: New
SPECIFICATIONS:
Blade Size…………. 9”
Motor Size…………. 1 HP – 110V – 1 Phs
Arbor Speed………… 50 RPM
Weight…………….. 83 Lbs
Dimensions…………. 20″L x 16″W x 30″H
Max Cutting Capacities:
Degree
90 Round Solids………… 1″
45 Left Round Solids……. 1/2″
90 Round Tubing………… 2-1/2″
45 Left Round Tubing……. 2″
90 Square Solids……….. 3/4″
45 Left Square Solids…… 1/2″
90 Square Tubing……….. 2-1/4″
45 Left Square Tubing…… 1-3/4″
90 Rectangle Tubing…….. 5-1/8″ x 3-1/8″
45 Left Rectangle Tubing… 3-1/2″ x 3-1/3″
EQUIPPED WITH:
Adjustable Material Stop
Manual Quick Acting Vise
Material Support w/Rollers
Flood Coolant w/Pump
(1) Blade
MACHINE FEATURES
Bench Mount
Manually Operated
Mitering Head (45 Degree Leftt)
“Pistol Grip” Control Handle
OPTIONAL ACCESSORIES: P.O.R.
Oxide Coated Blade
COMMENTS: Mfg. In North Americ
“U.S.A.” DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
