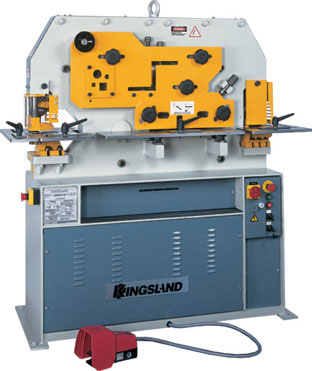

Model: Compact 80 Ton … (5) Work Stations
Punch Capacity: 1-1/8″ Hole Thru 3/4″ Plate
Type: Hydraulic
Year: New
SPECIFICATIONS:
PUNCHING:
Maximum Tonnage …… 80 Ton
Punch Capacity ……. 1-1/8″ Thru 3/4″
Throat …………… 8-5/8″
ANGLE SHEAR:
Max @ 90 Deg. …….. 6″ x 6″ x 1/2″
ROD SHEAR:
Maximum Round …….. 1/4″ up to 1-3/4″
Maximum Square ……. 1-3/4″
BAR SHEAR:
Flat Max Thickness … 8″ x 5/8″
Flat Max Width ……. 18″ x 5/8″
COPER NOTCHER:
Size …………….. 1-1/2″ x 3-1/2″ x 1/2″
Motor Size ……….. 10 HP – 220/440V – 3 Phs
Weight …………… 4620 Lbs
Dimensions………… To be Advised
EQUIPPED WITH:
(5) Work Stations:
1) Section Cutting
2) Angle
3) Punch
4) Shearing
5) Notcher
Punch & Die 7/8″ Diameter
Easy Change Punch Holder & Adaptors
Swing Away Punch Stripper Unit
Universal Bolster for Punching of Flat Bar & Angle
Repetition Support Table at Punch
Support Table at Shear
Blades for Cropping Angle & Round Bar
Blades for Shearing Flat Bar
Service Tool Kit
39″ Ruled Length Stop
NOTE: Hydraulic Oil Included
MACHINE FEATURES
Repetition Table to Punch & Shear
Power Inching & Accurate Foot Pedal Control w/Automatic Return of Stroke
Fully Adjustable & Positive “Linear” Stroke Control
Section Crop Station Accepts Optional Blades
Rectangular Notching
Full Length Shear Blades
Work Station Safety Guards
Miter Cutting Facility – Angle & Shear Stations
One Shot Lube
Low Pressure Hydraulic System
Overload Protection (Motor & Hydraulic)
Low Noise Operation
Complete Mobility
OPTIONAL ACCESSORIES (P.O.R.):
39” Touch & Cut Unit
Die Bolster for Punching in Web of Channel/Beam
Easy Change Punch Holder & Retaining Ring
Large Hole/Slot Attachment 1-1/2” to 2-1/4″
Large Hole/Slot Attachment 1-1/2” to 4-3/8″
Blades for Cropping Square Bar Only
Blades for Cropping Channel
Blades for Cropping I-Beam
Blades for Cropping Tee
Hold Down Plate (for Above)
90º Vee Notch Unit w/Table Guides
Vee Notch Unit Less than 90º w/Table Guides
Flat Bar Bending Unit (Single Vee) 3-1/8″ x 1/2″
78″ Ruled Length Stop w/Support
Adjustable Roller Material Supports
Movable 12V Halogen Lamp on Magnetic Base
(4) Anti Vibration Pads
Single Phase
COMMENTS: Mfg. in Europe
