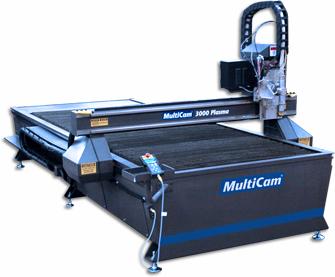

Model: 3000
Type: CNC Plasma
Year: New
SPECIFICATIONS:
Max. Sheet Size ……… 96” x 240”
Table Load Capacity ….. 1-1/2” THK. STL.
TRAVELS:
“X” Axis (Length) ……. 241”
“Y” Axis (Width) …….. 96”
“Z” Axis (Verti………. 6”
Repeatability ……….. 0.001”
Position Accuracy ……. +/- 0.005”
Max. Positioning Speed… 1800 IPM
CNC Control …………. Multicam EZ
Power Source ………… Hyperformance “HPR130” Hy-Def Plasma w/Auto Gas Console
Output Current ………. 30 – 130 Amps
Wired ………………. 440V – 3 Phs
EQUIPPED WITH:
Multicam EZ Control
Hypertherm … HPR130 Hydefinition Plasma Power Unit w/Auto Gas Console
Dual Side Direct Drive Rack And Pinion
96” x 240” Water Table
Automatic Torch Height Control w/ Crash Protection
Oxy Fuel Torch on Adjustable Slide
OPTIONAL ACCESSORIES:
Shop Data – Parts II + w/Advanced Nesting
EZ G-Code Advanced Nesting
Hypertherm Hyperformance HPR 260 w/Auto Gas Unit
COMMENTS: Mfg. In U.S.A.
A U.S.A. IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
