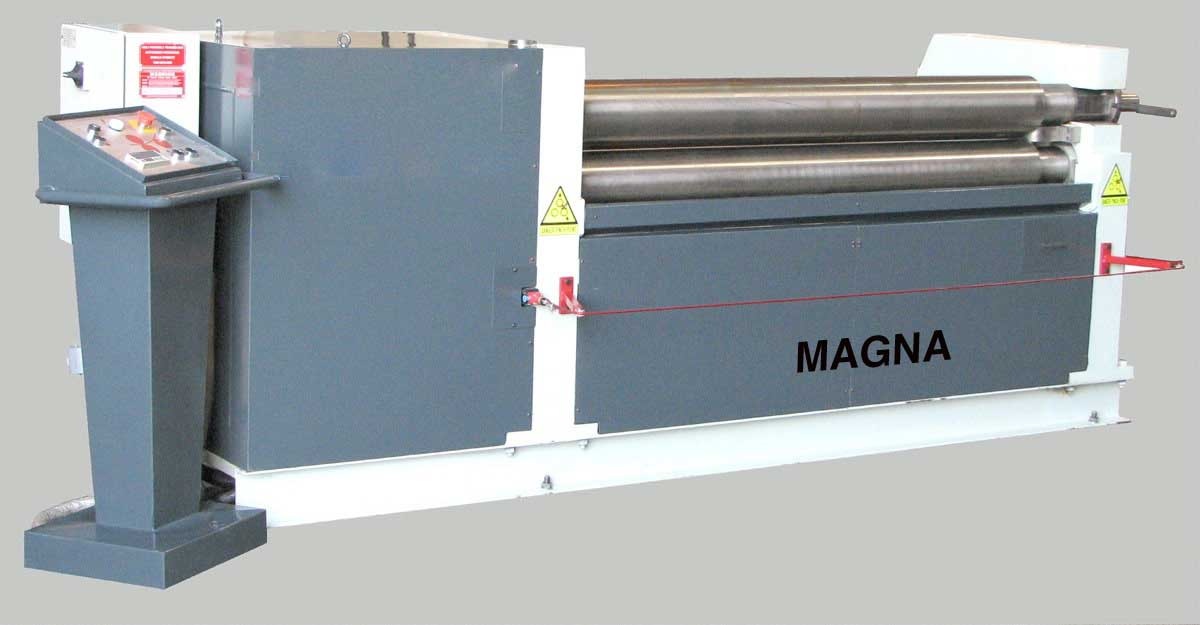

Model: 825
Type: Hydraulic
Year: New
SPECIFICATIONS:
Roll Length:…………….. 96”
Top Roll Diameter:……….. 7.4”
Rolling Cap. (Mild Steel):… .281” 36,000 PSI Yield Material
Pre-Bend Cap.(Mild Steel):… .250” 36,000 PSI Yield Material
Min. Diameter (Rolling):….. 12”
Min. Diameter (Pre-Bend):…. 12”
Number of Rolls (Total):….. (3)
Number of Rolls (Powered):… (2)
Rolling Speed:…………… 12.5 FPM
Motor:………………….. 5.5 HP-220/440V-3 Phs
Weight:…………………. 8025 Lbs
EQUIPPED WITH:
Powered Roll Adjustment
Precision Pinch Roll Adjustment
Top Roll Swing Out
“Top” Pinch Roll … (Middle)
“Powered”
Nonadjustable
“Bottom” Pinch Roll … (Middle)
”Powered”
”Motorized” Adjustment
“Rear” Roll
“Motorized” Adjustment
Pedestal Control
Emergency Trip Line
Quick Roll Adjustment
Roll Position Indicators
Crowned Rolls
Low Voltage Push Button Controls
Hardened Rolls
Cone Rolling Attachment
DRO for Forming Rolls
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B. Location
TERMS: Check w/Order
All prices subject to change without notice
