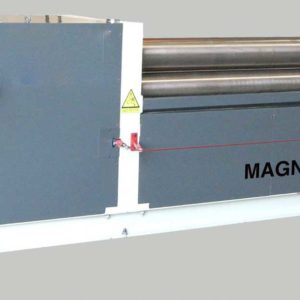

Model: 4R-HSS 25/280
Type: Double Pinch
Year: New
SPECIFICATIONS:
Roll Length…………….. 100.4”
Top Roll Diameter……….. 8.66”
Rolling Cap (Mild Steel….. 5/8”
Pre-Bend Cap (Mild Steel)… 1/2”
Min. Diameter (Rolling)….. 13”
Min. Diameter (Pre-Bend….. 13”
Number of Rolls (Total)….. 4
Number of Rolls (Powered)… 3
Rolling Speed (2)……….. 5 & 16-1/2 FPM
Motor………………….. 21.5 HP – 220/440V – 3 Phs
Weight…………………. 20,240 Lbs
Dimensions (L x W x H)…… 206” x 67” x 73”
EQUIPPED WITH:
Movable Control Console
Roll Adjustment & Rotation (Push Button)
Roll Speed (Switch)
Open/Close Hydraulic Drop End (Push Button)
Digital Readouts
Machine Perimeter E-Stop Cable
Machine & Console Mounted E-Stop Buttons
Cone Rolling Attachment (Reduced Capacity)
MACHINE FEATURES:
Double Pinch
Top & Side Rolls (Powered)
Bottom Roll (Non Powered) Hardened Rolls
Hydraulic Driven Rolls (Hydraulic Motor & Planetary Gear Reducer)
(2) Adjustable Side Rolls w/D.R.O.
Pinch & Side Rolls Independently Adjustable
Leveling Sytem To Insure Parallelism Of All (3) Adjustable Rolls
Forward & Reverse Rotation (Push Button)
Adjustable Pinch w/Readout
(2) Speed Rotation
Hydraulic Drop End w/Automatic Raise Of The Top Roll
Inclinable Pinch & Side Rolls For Cone Rolling
OPTIONAL ACCESSORIES:
Available Upon Request
COMMENTS:
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
