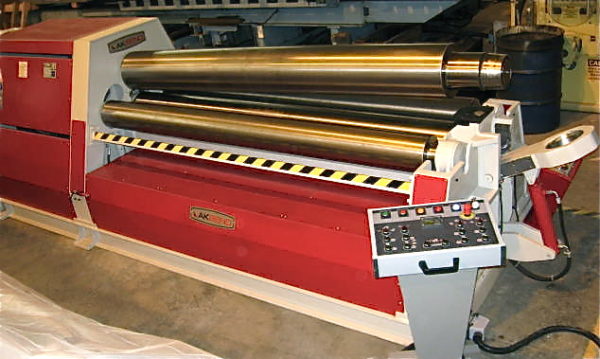

Model: AHS-25/13
Type: Double Pinch
Year: New
SPECIFICATIONS:
Roll Length:…………….. 102”
Top Roll Diameter:……….. 11.80”
Rolling Cap. (Mild Steel):… .625” (5/8” Mild Steel) w/36,000 PSI Yield Material
Pre-Bend Cap.(Mild Steel):… .500” (1/2” Mild Steel) w/36,000 PSI Yield Material
Min. Diameter (Rolling):….. 35.40”
Min. Diameter (Pre-Bend):…. 35.40”
Number of Rolls (Total):….. (4)
Number of Rolls (Powered):… (2)
Rolling Speed:…………… 13 FPM
Motor:………………….. 15 HP – 220/440V – 3 Phs
Weight:…………………. 17,850 Lbs
EQUIPPED WITH:
(4) Roll Double Pinch
“Top” Pinch Roll … (Middle)
“Powered”
Nonadjustable
“Bottom” Pinch Roll … (Middle)
”Powered”
”Motorized” Adjustment
“Bottom” Forming Roll … (Front & Rear Side)
“Non-Powered”
“Motorized” Adjustment
Hydraulic Driven Via Hydraulic Motor & Gear Reducer
Hardened Rolls
(2) Adjustable Side Rolls w/DRO’s
Leveling System To Insure Parallelism Of All (3) Adjustable Rolls
Forward & Reverse Rotation
Adjustable Pinch Roll Pressure
(2) Speed Rotation (Switch)
Hydraulic Drop End W/Automatic Raise Of The Top Roll
Inclinable Pinch & Side Rolls For Cone Rolling
Cone Rolling Attachment
Movable Control Console Equipped With:
Push Button Control Of Roll Adjustment & Rotation
Switch Control Of Roll Speed
Push Button Open/Close Hydraulic Drop End
Digital Readouts
E-Stop Button
Machine Perimeter E-Stop Cable
OPTIONAL ACCESORIES AVAILABLE: P.O.R.
Variable Speed Rotation
(1) Overhead Support
(2) Side Supports
COMMENTS: Mfg In Europe
