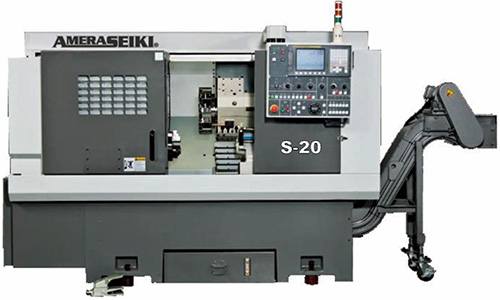

Model: S-20
Spindle Hole: 2.95″
Year: New
Type: Slant Bed
SPECIFICATIONS:
Control Type………….. Fanuc CNC
Swing Over Bed………… 22″
Dist Between Centers…… 31.5″
Max. Turning Diameter….. 11”
Max. Turning Length……. 22”
Spindle Nose………….. A2-6
Spindle Hole………….. 2.95”
Bar Capacity………….. 2.36”
Chuck Size……………. 8″
Spindle Speeds………… 4,000 RPM
Number of Tool Stations… (10) Stations
Tailstock Taper……….. #4 MT
Motor Size……………. 11/15 HP – 220V – 3 Phs
Rapid Traverse………… X Axis 20/787 IPM… Z 20 IPM
Weight……………….. 8819 Lbs
Dimensions……………. To be Advised
EQUIPPED WITH:
Fanuc CNC Control
8” – 3 Jaw Hydraulic Chuck
(1) Set Of Hard Jaws
(1) Set Of Soft Jaws
Foot Pedal
Automatic Lube System
Coolant System
Fully Enclosed Splash Guard
Front Door Interlock
Chip Conveyor w/Cart
Remote MPG Hand Wheel
Halogen Work Light
Tool Box w/Tools
Leveling Bolts & Plates
Operations Manual
MACHINE FEATURES:
“Slant Bed” Design
“H & G” Ways
High Pressure Coolant Pump
“Leaser” Tested Accuracy
H & G Precision Ballscrews & Bedways
Tail Stock (Manual)
OPTIONAL ACCESSORIES:
Extra 8” Soft Jaw
Extra 8” Hard Jaw
Exchange To Collet Chuck 2”
Extra Collet Chuck 2″
Exchange To Collet Chuck 2.36”
Extra Collet Chuck 2.36”
Collet… each
Extra 10” – 4 Jaw Hydraulic Hollow Chuck
Extra 10” Soft Jaw
Extra 10” Hard Jaw
TOOL HOLDER
Boring Tool Holder
Face Cutting Tool Holder
Boring Sleeves… Each
U-Drill Holder w/Sleeve
OTHER
Air Blow Device
Part Catcher
Oil Skimmer
Oil Mist Collector
Auto Door
High Pressure Coolant Pump w/6) Bars
“Renishaw” Touch Probe
Bar Feeder Interface
49” Bar Feeder
61” Bar Feeder
125”Bar Feeder
Fanuc 10.4” Monitor
Installation & Set-Up…(Per Day)*
Control Training……..(Per Day)*
* Plus Travel Expanses
COMMENTS:
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER:
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
