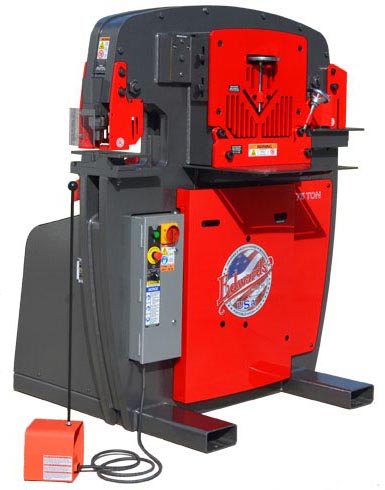

Model: Jaws IV … (4) Work Stations
Punch Capacity: 1-1/16″ Hole Thru 7/8″ Plate
Type: Hydraulic
Year: New
SPECIFICATIONS:
PUNCHING:
Max Tonnage…………. 75 Ton
Punch Capacity………. 1-1/16″ Hole Thru 7/8″ Plate
Max. Stroke Length…… 1-13/16″
Throat……………… 10″
SHEARING:
Flat Bar (14″ Blade)…. 14″ x 1/2″
10″ x 3/4″
ANGLE SHEAR:
Angle Shear @ 90 Degree. 5″ x 5″ x 1/2″
Round Bar…………… Up to 1″ (Optional)
Square Bar………….. Up to 1″ (Optional)
COPER NOTCHER:
Coper Notcher……….. 2-1/2″ x 5″ x 1/2″
Vee Notcher…………. 3″ x 3″ x 1/4″ (Optional)
Motor Size………….. 7.5 HP – 220V – 3 Phs
Weight……………… 4100 Lbs
Dimensions (LxWxH)…… 50″ x 45″ x 60-1/4″
EQUIPPED WITH:
(4) Separate Work Stations
Punching Station
Flat Bar Shear
Angle Shear
Open Tooling Station
Note: Designed for Coper Notcher only
Keyed Punch Ram
Punch Holder, Adapter & Stripper
Pedestal Die Table
Movable Foot Pedal
Electric Stroke Control
Safety Guards
OPTIONAL ACCESSORIES:
440V – 3 Phs
220V – 1 Phs
Please Contact us for Complete List of Optional Accessories
COMMENTS: Mfg. in U.S.A.
