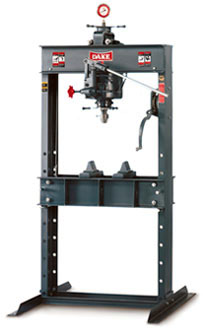

Model: 75H
Type: Hand Operated H-Frame
Capacity: 75 TON
Year: New
SPECIFICATIONS:
Capacity…………….. 75 Ton
Ram Travel…………… 4-1/2″
Screw Travel…………. 7″
Minimum Ram To Table….. 6”
Maximum Ram To Table….. 39”
Between Uprights……… 44″
Between Table Channels… 8-1/4”
Height ……………… 87″
Weight………………. 1,245 Lbs
EQUIPPED WITH:
Hand Operated Hydraulic Jack
(2) Forged Steel V-Blocks
(2) Forged Steel Table Plates
Flat Ram Nose
Rapid Ram Return
Adjustable Table
Movable Workhead
V-Ram Nose
Pressure Gauge
Self Locking Table Hoist
COMMENTS: Mfg In The U.S.A.
“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part?
Have a Technical Question?
CALL: IMCO at 614-436-4376
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
