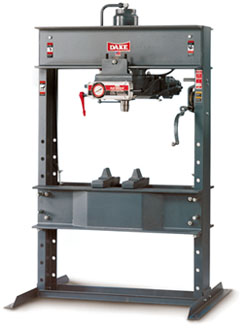

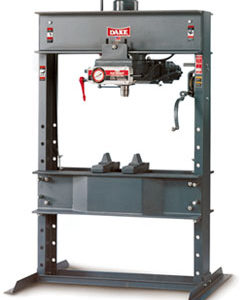

Model: 75
Type: Electric Over Hydraulic H-Frame
Capacity: 75 TON
Year: New
SPECIFICATIONS:
Capacity…………….. 75 Ton
Motor……………….. 2 HP – 230/460V – 3 Phs
RPM…………………. 1800 RPM
Ram Travel…………… 10”
Advanced Speed……….. 28″ IPM
Press Speed………….. 5″ IPM
Minimum Ram To Table….. 6”
Maximum Ram To Table….. 36”
Between Uprights……… 44″
Between Table Channels… 8-1/4”
Height ……………… 86″
Weight………………. 1650 Lbs
EQUIPPED WITH:
Flat Ram Nose
V-Ram Nose
Stroke Indicator
(2) Forged Steel V-Blocks
(2) Forged Steel Plates
Pressure Gauge
Safety Release Valve
Self Locking Table Hoist
MACHINE FEATURES:
Electric Operation
Rapid Ram Approach & Return
Adjustable Table
Variable Ram Speed
Movable Workhead
OPTIONAL ACCESSORIES:
Remote Pressure Regulator
COMMENTS: Mfg In The U.S.A.
