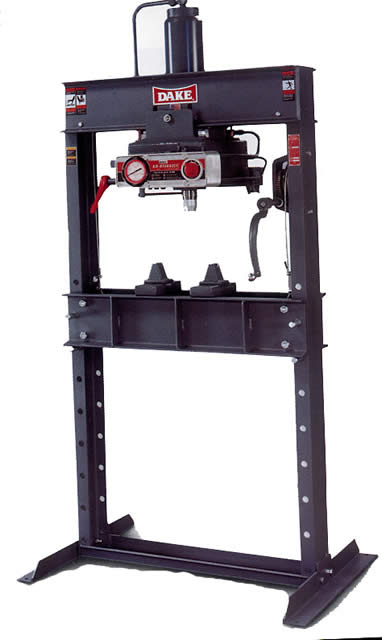

Model: 2P-75
Type: Air Over Hydraulic H-Frame
Capacity: 75 TON
Year: New
SPECIFICATIONS:
# Of Pumps ………….. 2
Capacity…………….. 75 Ton
Air Pressure…………. 90-125 PSI
Ram Travel…………… 10”
Advanced Speed……….. 40″ IPM
Press Speed………….. 3-1/2″ IPM
Minimum Ram To Table….. 6”
Maximum Ram To Table….. 36”
Between Uprights……… 44″
Between Table Channels… 8-1/4”
Height ……………… 86″
Weight………………. 1,550 Lbs
EQUIPPED WITH:
Hand Operated Hydraulic Jack
(2) Forged Steel V-Blocks
(2) Forged Steel Table Plates
Flat Ram Nose
By-Pass Hole
V-Ram Nose
Safety Release Valve
Self Locking Table Hoist
Rapid Ram Return
Stroke Indicator
Movable Workhead
Adjustable Table
Pressure Gauge
COMMENTS: Mfg In The U.S.A.
“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part?
Have a Technical Question?
CALL: IMCO at 614-436-4376
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
