Model: LMG

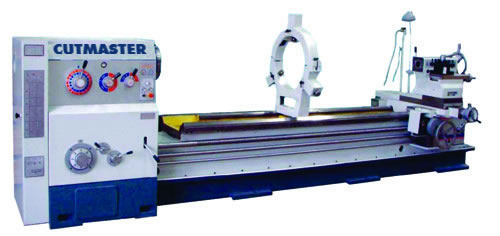

Type: Geared Head Lathe
Year: New
SPECIFICATIONS:
Swing Over Bed……….. 72”
Swing Over Cross Slide… 56-3/4”
Swing In Gap…………. 78-3/4”
Dist Between Centers….. 60”
Spindle Nose…………. D1-11
Spindle Hole…………. 5-1/8”
Bed Width……………. 24”
Spindle Speeds(18)……. 6-480 RPM
Threading……………. Inch / Metric
Motor Size…………… 20 HP – 220/440V – 3 Phs
Tailstock Taper………. #6 MT
Weight………………. 19,200 Lbs
Dimensions…………… To be Advised
EQUIPPED WITH:
MACHINE FEATURES:
5-1/8” Spindle Hole
Gap Bed Design
Automatic Lubrication
Solid Cast Iron Base
H & G Headstock, Gears & Bed Ways
STANDARD EQUIPMENT:
20” – 3 Jaw (Steel) Chuck
25” – 4 Jaw (steel) Chuck
55” Face Plate
12” Drive Plate
27” Steady Rest (Roller Bearing)
Inch/Metric Dials
Thread Chasing Dial
(2) Dead Centers & (1) Reducing Sleeve
Foot Brake
Halogen Work Light
Coolant System
Tool Box w/ Tools
OPTIONAL ACCESSORIES AVAILABLE: P.O.R.
Quick Change Toolpost
Taper Attachment (30” Travel)
Newall DRO
COMMENTS:
