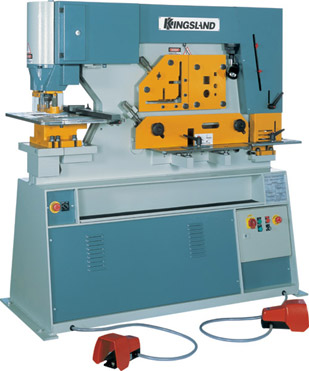

Model: Multi 70-25 … (5) Work Stations
Punch Capacity: 1″ Hole Thru 3/4″ Plate
Type: Hydraulic
Year: New
SPECIFICATIONS:
PUNCHING:
Maximum Tonnage …… 70 Ton
Punch Capacity ……. 1″ Hole Thru 3/4″ Plate
Throat …………… 25″
ANGLE SHEAR:
Max @ 90 Deg. …….. 5-3/16″ x 5-3/16″ x 1/2″
ROD SHEAR:
Maximum Round …….. 1/4″ up to 1-3/4″
Maximum Square ……. 1-3/4″
BAR SHEAR:
Flat Max Width ……. 14-3/4″ x 3/8″
COPER NOTCHER:
Maximum ………….. 1-3/4″ x 3-1/2″ x 3/8″
Motor Size ……….. 7.5 HP – 220/440V – 3 Phs
Weight …………… 3850 Lbs
Dimensions………… To be Advised
EQUIPPED WITH:
(5) Separate Work Stations:
Punching
Angle Shear
Rod Shear
Bar Shear
Coper Notcher
Punch & Die
Easy Change Punch Holder
Ring Adaptors
Support Table at Punch, Notcher & Shear
Blades For Flat Shear Bar , Cropping Angle , Round & Square Bar
One-Shot Lube
Swing Away Punch Stripper Unit
Universal Die Bolster for Punching of Flats, Angle & Flanges of Channel or Beam
Coper Notcher Unit
Hydraulic Unit
Halogen Work Light
39″ Touch & Cut Ruled Length Stop
Measuring Scales in the Notch Table
Service Tool Kit & Operations Manual
MACHINE FEATURES:
Removable Table Block for Channel/Beam Punching
Compatible Work Station Heights
Work Station Guards
(2) Cylinder Operation
Overload Relief on Hydraulic System
Low Maintenance
OPTIONAL ACCESSORIES (P.O.R.):
Prouctivity Package – Includes:
Halogen Work Light
One Touch & Cut Ruled Length Stop
Fine Adjustment to Punch Stroke
Meaasuring Scales in Notch Table
Additional Angle Shear Blades
Additional Fat Shear Blades
Additional Round & Square Shear Blades
Rectangle Notch Punch & Die
Brake Attachment (Single Opening Die)
Brake Attachment (4 Way Die)
Large Hole Attachment (1-1/2″ to 4-5-16″)
90 Degree Vee Notcher
Punch Attachment for Notcher Station
Shear Blades for Tee
Adjustable Hold Down for Tee
Adjustable Roller Material Support
(4) Anti-Vibration Mounting Pads
Electrical (6) Digit Batch Counter
COMMENTS: Mfg. in Europe
