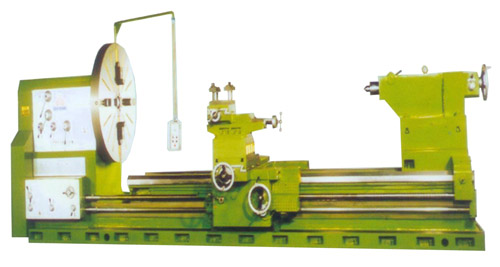

Model: FEL
Type: Heavy Duty Lathe
Year: New
SPECIFICATIONS:
Headstock Type…………… Geared Head
Swing Over Bed…………… 67″
Swing Over Cross Slide……. 54″
Swing in Gap…………….. 88″
Dist Between Centers……… 160″
Spindle Nose…………….. A2-15
Spindle Hole…………….. 6″
Bed Width……………….. 40″
Spindle Speeds…………… 1.7 – 170 RPM
Threading……………….. Inch / Metric
Motor Size………………. 30 HP – 220/440V – 3Phs
Tailstock Taper………….. #7 MT
Weight………………….. 41,800 Lbs
Dimensions………………. To be Advised
EQUIPPED WITH:
6″ Spindle Hole
55″ – 4 Jaw Face Plate Chuck
(11″ – 23.6″) Steady Rest
Center Sleeve
#7 MT Dead Center (2 pcs)
Set of Foundation Bolts
Tool Box w/Tools
OPTIONAL ACCESSORIES: P.O.R
32″ – 3 Jaw Chuck (Steel Body) 11” Thru Hole
32″ – 4 Jaw Chuck (Steel Body)
40″ – 4 Jaw Chuck (Steel Body)
60″ – 4 Jaw Face Plate in Lieu of 55″
Upgrade to 40 HP
Upgrade to 50 HP
(11″ – 23.6″) Steady Rest
Open Steady Rest (2 Point Type)
Roll Rest (2 Point Type)
Halogen Work Light
Rear Full Length Splash Guard
Rear Traveling Splash Guard
Tool post Chip Cover
Lead Screw Elastic Curtains
Newall DRO..(Installed)
COMMENTS: Mfg. in Taiwan
LOAD CAPACITY:
Between (2) Centers – “No” Steady Rest … 26,000 Lbs
Between (2) Centers – (1) Steady Rest … 33,000 Lbs
Between (2) Centers – (2) Point “Open” Steady Rest … 44,000 Lbs
