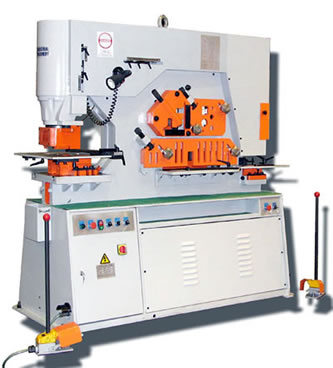

Model: DO-90T … (5) Work Stations
Punch Capacity: 1-1/4” Hole Thru 5/8” Plate
Type: Hydraulic
Year: New
SPECIFICATIONS:
PUNCHING:
Max. Tonnage………. 66 Ton
Punch Capacity…….. 1-1/4” Thru 5/8” Plate
Max Stroke Length …. 3-1/8″
Throat……………. 12″
BAR SHEAR:
Flat Max. Thickness… 12″ x 5/8”
Flat Max. Width……. 16” x 5/16”
ANGLE SHEAR:
Max. Size…………. 5″ x 5″ x 3/8″
COPER NOTCHER:
Max Size………….. 3/8″ x 2-1/4″ x 4″
ROUND/SQUARE:
Max. Size ………… 1-3/4″/1-5/8″
Motor Size………… 7.5 HP – 220/440V – 3 Phs
Weight……………. 3530 Lbs
Dimensions………… 64″(l) x 28″(w) x 69″(h)
EQUIPPED WITH:
(5) Separate Work Stations:
Punching
Flat Bar
Angle
Rod
Coper Notcher
Punch & Die
Easy Change Punch Holder
Ring Adaptors
Support Table at Punch, Notcher & Shear
Blades for Flat, Round, Square & Angle
One-Shot Lubrication
Swing-Away Punch Stripper Unit
Universal Bolster for Punching Flats, Angle & Flanges of Channel or Beam
Hydraulic Unit
Press Brake Attachment
3′ Electric Back Gauge
(3) Sets of Round Punches & Dies
Service Tool Kit & Operators Manual
Removable Table Block for Channel/Beam Punching
Compatible Work Stations Heights
Work Station Guards
(2) Cylinder Operation
Overload Relief on Hydraulic System
