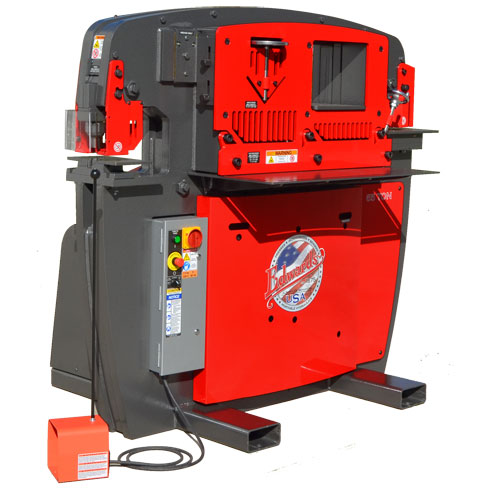

Model: Jaws V … (5) Work Stations
Punch Capacity: 1-1/16″ Hole Thru 3/4″ Plate
Type: Hydraulic
Year: New
SPECIFICATIONS:
PUNCHING:
Max Tonnage…………. 65 Ton
Punch Capacity………. 1-1/16″ Hole Thru 3/4″ Plate
Max. Stroke Length…… 1-13/16″
Throat……………… 9-3/4″
SHEARING:
Flat Bar (24″ Blade)…. 24″ x 3/8″
4″ x 1″
ANGLE SHEAR:
Angle Shear @ 90 Degree. 5″ x 5″ x 3/8″
Round Bar…………… Up to 1″ (Optional)
Square Bar………….. Up to 1″ (Optional)
COPER NOTCHER:
Coper Notcher……….. 2-1/2″ x 5″ x 3/8″
Vee Notcher…………. 3″ x 3″ x 1/4″ (Optional)
Motor Size………….. 7.5 HP – 220V – 3 Phs
Weight……………… 4750 Lbs
Dimensions………….. 62-1/8″(l) x 45″(w) x 57″(h)
EQUIPPED WITH:
(5) Separate Work Stations:
Punching Station
Flat Bar Shear
Angle Share
Coper Notcher
Open Station
Keyed Punch Ram
Punch Holder, Adapter & Stripper
Movable Foot Pedal
Electric Stroke Control
Pedestal Die Table
Safety Guards
OPTIONAL ACCESSORIES:
440V – 3 Phs
220V – 1 Phs
Please Contact us for Complete List of Optional Accessories
COMMENTS: Mfg. in U.S.A.
