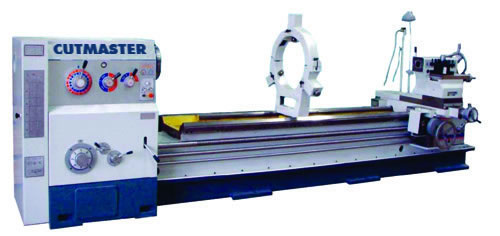

Model: LMG
Type: Big Bore Lathe
Year: New
SPECIFICATIONS:
Headstock……………. Geared Head
Swing Over Bed……….. 64”
Swing Over Cross Slide… 48-7/8”
Swing In Gap…………. 70-7/8”
Dist. Between Centers…. 180”
Spindle Nose…………. D1-11
Spindle Hole…………. 6-1/4″
Bed Width……………. 24”
Spindle Speeds(18)……. 5 – 476 RPM
Threading……………. Inch / Metric
Motor Size…………… 20 HP-220 Or 440V-3 Phs
Tailstock Taper………. #6 MT
Weight………………. 22,600 Lbs
Dimensions…………… To be Advised
EQUIPPED WITH :
STANDARD EQUIPMENT:
20” – 3 Jaw (Steel) Chuck
25” – 4 Jaw (Steel) Chuck
47” Face Plate
12” Drive Plate
27” Steady Rest (Roller Bearing)
Follow Rest
(4) Way Toolpost
(4) Way Rapid Traverse
Inch/Metric Dials
Thread Chasing Dial
(2) Dead Centers & (1) Reducing Sleeve
Foot Brake
Halogen Work Light
Coolant System
Tool Box w/Tools
MACHINE FEATURES:
6-1/4″ Spindle Hole
Gap Bed Design
Automatic Lubrication
Solid Cast Iron Base
H & G Head Stock, Gears & Bedways
