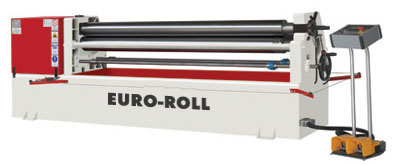

Model: ASM 140-20/4.0
Type: Hydraulic
Year: New
SPECIFICATIONS:
Roll Length:…………….. 72”
Top Roll Diameter:……….. 5.5”
Rolling Cap. (Mild Steel):… .179” (7 GA) 36,000 PSI Yield Material
Pre-Bend Cap.(Mild Steel):… .149” (9 GA) 36,000 PSI Yield Material
Min. Diameter (Rolling):….. 8.25”
Min. Diameter (Pre-Bend):…. 8.25”
Number of Rolls (Total):….. 3
Number of Rolls (Powered):… 2
Rolling Speed:…………… 16 FPM
Motor:………………….. 3 HP – 220/440V – 3 Phs
Weight:…………………. 3,450 Lbs
EQUIPPED WITH :
(3) Roll Initial Pinch
“Top” Pinch Roll … (Front Side)
“Motorized”
Non-Adjustable
“Bottom” Pinch Roll … (Front Side)
”Motorized”
”Hand Wheel” Adjustment
“Bottom” Forming Roll … (Rear Side)
“Non-Motorized”
“Hand Wheel” Adjustment
Mechanical Driven via Electric Motor & Gear Reducer
Manual “Swing-Out” of Top Roll
Manual Adjustment of Back / Forming Roll (Hand Wheel)
Precision Scales & Pointer Mounted on Frame for Roll Position (Pinch & Forming)
Pinch & Forming Rolls Incline for Cone Rolling
Cone Rolling Attachment
Manual Adjustment of Pinch Roll (Hand Wheel)
Movable Control Console Equipped with:
Foot Pedal Control of Roll Rotation
E-Stop Button
Machine Perimeter E-Stop Cable
OPTIONAL ACCESSORIES AVAILABLE: … P.O.R.
Powered Adjustment Of Forming Roll
Digital Readout For Forming Roll
Hardened Roll
Foot Pedal For Roll Rotation (In Lieu Of Push Buttons)
COMMENTS: Mfg. In Europe
