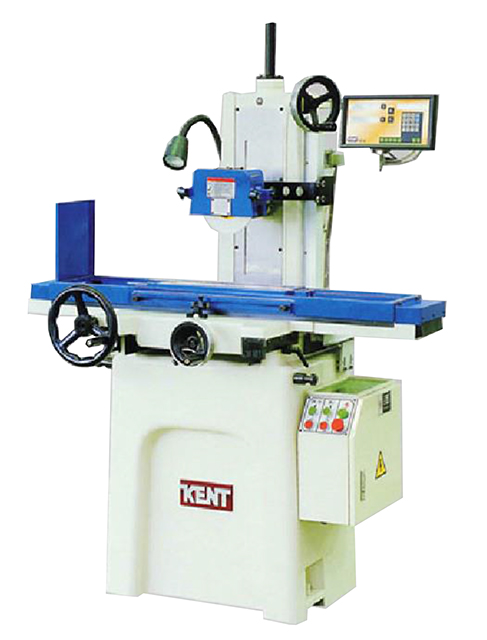

Model: KGS-618
Type: Hand Operated
Year: New
SPECIFICATIONS:
Table Size………………… 6” x 18”
Longitudinal Travel………… 18-5/8”
Cross Travel………………. 7-1/4”
Vertiacl Travel……………. 15″
Center Line Spindle To Table… 15”
Wheel Size………………… 7” x 1/2″ x 1-1/4″
Motor Size – Voltage……….. 2 HP – 220/440V – 3 Phs
Spindle Speed……………… 3360 RPM
Table Weight Capacity………. 265
Weight……………………. 1875 Lbs
Dimensions………………… 71″L x 47-1/4″W x 78-1/2″H
EQUIPPED WITH:
Wheel Balancing Base & Arbor
Grinding Wheel
Table Dresser
Wheel Flange
Halogen Work Light
Tool Box & Tools
MACHINE FEATURES
Cast Iron Base
Hardened & Ground Table Ways … Cable Driven
Double-V Turcite Cross Ways
Cross Feed “Lock”
Class “7” Spindle Bearings (Paired)
Large Down Feed Graduation Dial
.0002″ Accuracy
OPTIONAL ACCESSORIES: P.O.R.
6″ x 18″ Permanent Magnetic Chuck
Coolant System & Dust Collector
Coolant System
Extra Wheel Flange
(2) Axis Sony Digital Readout – Installed
Installation and Set-Up
“USA” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-914-5087
F.O.B.: Location
TERMS: Check w/Order
All prices subject change without notice
