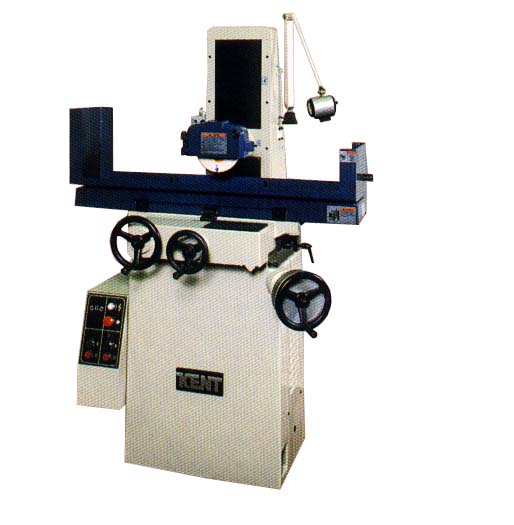

Model: KGS-616-S
Type: Hand
Year: New
SPECIFICATIONS:
Table Size………………… 6” x 16”
Longitudinal Travel…….(X).. 16-15/16”
Cross Travel…………..(Y).. 7-7/8”
Vertical Travel………..(Z).. 17-5/16”
Center Line Spindle To Table… 17-5/16″
Wheel Size………………… 8” X 3/4” X 1-1/4”
Axis……………………… Hand Operated
Motor Size………………… 2 HP – 220/440V – 3 Phs
Table Load Capacity………… 220 Lbs
Weight……………………. 1650 Lbs
Dimensions (LxWxH)…………. 60″ x 46″ x 77″
EQUIPPED WITH:
Full Length Splash Guard
Wheel Balancing Base & Arbor
Grinding Wheek
Table Dressser
Wheel Flange
Halogen Work Light
Tool Box & Tools
MACHINE FEATURES:
Cast Iron Base
Hardened & Ground Table Ways – Cable Driven
Double-V Turcite Cross Waus
Cross Feed “Lock”
Class “&” Spindle Bearings (Paired)
Large Down Feed Graduation Dial
.0002″ Accuracy
OPTIONAL ACCESSORIES (P.O.R.):
6″ x 14″ Kanetec Permanent Magnetic Chuck
Coolant System & Dust Collector
Coolant System & Magnetic Separator
Extra Wheel Flange
(2) Axis Sony Digital Readout
“U.S.A.” IMPORTER – DISTRIBUTION & PARTS CENTER
Need a Part ?
Have a Technical Question ?
CALL: IMCO at 614-4644376
F.O.B.: Location
TERMS: Check w/Order
All prices subject to change without notice
