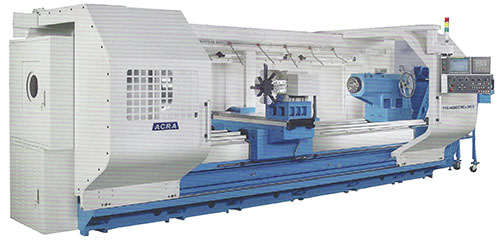

Model: CL-78A
Year: New
Type: Hollow Spindle
SPECIFICATIONS:
Swing Over Bed……….. 59”
Swing Over Cross Slide… 35-7/16”
Dist Between Centers….. 200″ – 240″
Max. Turning Length…… 200″ – 240″
Spindle Nose…………. A2-15
Spindle Hole…………. 14”
Bed Width……………. 39-3/8”
Spindle Ranges……….. (2)
Spindle Speeds……….. 6-650 RPM
Tailstock Taper………. #6 MT
Rapid Traverse……….. Yes
Motor Size…………… 50/60 HP-220V-3 Phs
Control Type…………. Fanuc OiTD
Weight………………. 43,750 – 47,900 Lbs
Dimensions…………… To be Advised
EQUIPPED WITH:
MACHINE FEATURES:
Mazak Design – “Flat Bed”
7.1” Spindle Hole
Heavy Duty (2) Step Transmission w / Helical Reducing Gear For Heavy Duty Cuts
Rigid Construction (Meehanite Casting)
Double V-Slideways
STANDARD EQUIPMENT:
Fanuc Oi-TD CNC Control NOTE: With Manual i Guide
10.4” LCD Monitor
T-Slotted Cross Slide
Chuck Ready (Front & Back)
Choice Of V-8 Turret (Front) Or H-4 Turret (Rear)
Two Doors
Full Length Splash Guard
Auto Lubrication
Coolant System
Chip Conveyor (Rear) & Chip Cart
Halogen Light
Tailstock (Movable) Via Carriage
Hydraulic Tailstock w / Built In Center
Foundation Pads
Parts – Operation Manuals
OPTIONAL ACCESSORIES AVAILABLE:… P.O.R.
36” – 3 Jaw “Hydraulic” Chuck
36” – 3 Jaw “Pneumatic” Power Chuck
36” – 3 Jaw “Manual” Chuck (SCA)
36” – 4 Jaw “Manual” Independent Chuck (SCA)
(17-7/16” – 25-7/16”) Steady Rest (Medium Duty)
(25-7/16” – 33-7/16”) Steady Rest (Heavy Duty)
(2) Turret Configuration (H-4 Front) (V-8 Front)
Chip Conveyor (Front)
For (8) Station Vertical Disc Turret (V-8)
Boring Bar Sleeve (3-8”, 1/2”, 5/8”, 3/4”, 1”, 1-1/4”)
Drill Sleeve (MT #3 Or MT #4)
Boring Bar Holder (1-1/2)
Facing Tool Holder
Boring Bar Support (Not Including The Boring Bars (H-4)
Boring Tool Holders (2-23/64” – 2-31/64”)
Boring Tool Holders (2-3/4” – 3-5/32”)
