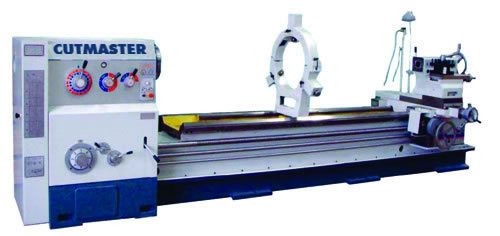

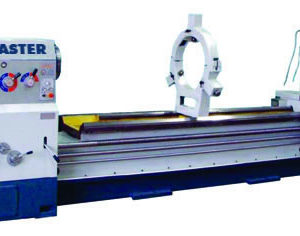

Model: LMG
Type: Geared Head
Year: New
SPECIFICATIONS:
Swing Over Bed……….. 56”
Swing Over Cross Slide… 43-5/16
Swing in Gap…………. 63”
Dist Between Centers….. 180”
Spindle Nose…………. D1-11
Spindle Hole…………. 5-1/8”
Bed Width……………. 24”
Spindle Speeds(18)……. 7 – 576 RPM
Threading……………. Inch / Metric
Motor Size…………… 20 HP – 220/440V – 3 Phs
Tailstock Taper………. #6 MT
Weight………………. 19,900 Lbs
EQUIPPED WITH:
MACHINE FEATURES
5-1/8” Spindle Hole
Gap Bed Design
Automatic Lubrication
Solid Cast Iron Base
H & G Head Stock, Gears & Bed Ways
Adjustable Hydraulic Clutch For Spindle Turning & Braking
STANDARD EQUIPMENT
20” – 3 Jaw (Steel) Chuck
25” – 4 Jaw (Steel) Chuck
39-1/4” Face Plate
12” Drive Plate
27” Steady Rest (Rolling Bearing)
Follow Rest
(4) Way Tool Post
(4) Way Rapid Traverse
Inch/Metric Dials
Thread Chasing Dial
(2) Dead Centers & (1) Reducing Sleeve
Foot Brake
Halogen Work Light
Coolant System
Tool Box w/Tools
OPTIONAL ACCESSORIES
Taper Attachment………… (30” Travel)
Newall DRO .. (Installed)… 180”
