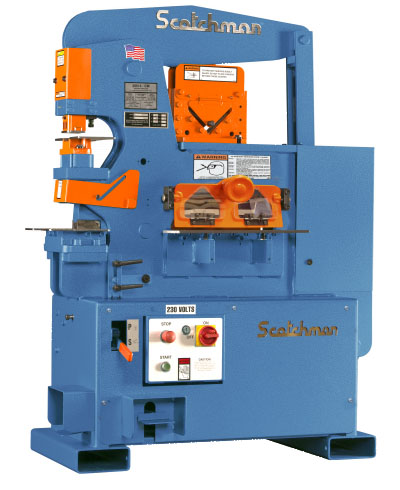

Model: 50514-EC … (4) Work Stations
Type: Hydraulic
Punch Capacity: 1-1/4” Hole Thru 1/2” Plate
Year: New
SPECIFICATIONS:
PUNCHING:
Max. Tonnage………. 50 Ton
Punch Capacity…….. 1-1/4” Hole Thru 1/2” Plate
Throat……………. 6″
BAR SHEAR:
Flat Max. Thickness… 4″ x 3/4”
Flat Max. Width……. 14” x 1/4”
AANGLE SHEAR:
Max. Size…………. 4” x 4” x 3/8”
Motor Size………… 3 HP – 220/440V – 3 Phs
Weight……………. 1570 Lbs
Dimensions………… 47″(l) x 29″(w) x 59″(h)
EQUIPPED WITH:
Round Punch & Die Max. 1” Diameter
2″ Die Holder
Punch Nut w/Wrench & Stripper
Universal Bolster for Punching of Flat Bar & Angle
Stationary Foot Pedal
All Standard Safety Guards
MACHINE FEATURES:
(4) Separate Work Stations:
Punching Station
Flat Bar Shear
Coper Notcher
Open Stations Equipped w/Angle Shear
Adjustable Electric Stroke Controls
Keyed Punch Ram
Forklift Accommodation
Emergency Stop Button w/Lock & Tag Out
OPTIONAL ACCESSORIES AVAILABLE
3 HP – 220V – 1 Phs
Work Light
Punch Gauging Table w/Fence & Scale
Shear w/Miter Fence
6″ Brake w/4 Way Lower V-Die
8″ Brake w/2″ Opening Bottom V-Die
12″ Brake Attachment w/2″ Opening Bottom V-Die
12″ Brake Table w/Scale & Squaring Arm
Brake Length Gauge w/Scale
Pipe Notcher Housing
Tool Table Pusher for Pipe Notcher
Upper & Lower Sch. 40 Notching Dies (3/4″ – 2″ each)
90Ëš Vee Notcher
Rod Shear (1″ Rd or 3/4″ Sq)
Square Tube Shear (1/2″ – 2″ x 14 ga)
Fabrication 12″ Brake Package
12″ Brake Attachment
12″ Brake Table w/Scale & Squaring Arm
Brake Table Gauge w/Scale
COMMENTS: Mfg. In USA
