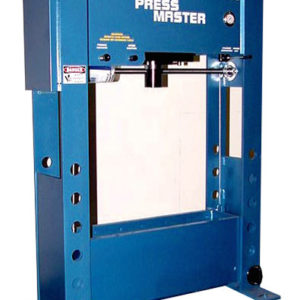

Model: HFBP-50/12-XWMWH
Type: Electric Over Hydraulic H-Frame
Capacity: 50 TON
Year: New
SPECIFICATIONS:
Capacity…………….. 50 Ton
Stroke………………. 12″
Bore………………… 6″
Ram Speed Advance…….. 20″ IPM
Ram Speed Return……… 24″ IPM
Dist. Between Posts…… 54″ (R to L)
Dist. Between Posts…… 10″ (F to B)
Maximum Dist. Bed to Ram. 34″
Motor……………….. 5 HP – 230V – 1 Phs
BROACHING C-FRAME SPECS:
Capacity…………….. 12 Tons
Stroke………………. 20″
Bore………………… 3″
Ram Speed Advance…….. 80″ IPM
Ram Speed Return……… 144″ IPM
Dimensions…………… 102″(h) x 102″(w) x 54″(d)
Weight………………. 2,800 Lbs
EQUIPPED WITH:
Electric/Hydraulic Operation
Open Sides To Facilitate Work On Long Pieces
Flat Ram Nose
Hydraulic Power Lift Table
Self Locking Table
Heavy Duty Steel Structure
Powered Moveable Workehead
Hydraulic Power Lift Table
Pressure Regulator To Limit Ram Pressure
Cylinder Activation Is Fingertip Controlled
(10) Gallon Hydraulic Oil Reservoir
Low Pressure Hydraulic System
STANDARD FEATURES 12 TON C-FRAME:
Pressure Regulator
Speed Control
OPTIONAL ACCESSORIES: (P.O.R.)
Foot Pedal-Electric Solenoid Valve
Adjustable Stroke Control W/Foot Pedal
V-Blocks
Front Safety Guard
18” Stroke Cylinder
24” Stroke Cylinder
COMMENTS: Mfg. in U.S.A.
